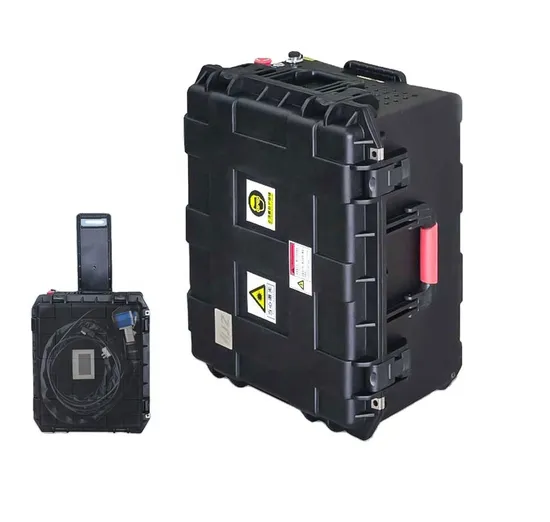

Air-Cooling Luggage Style Portable Fiber Laser Cleaning Machine 100W 200W 300W

Product Description

Air-Cooling Luggage Style Portable Fiber Laser Cleaning Machine Suitable for Automobile Metal Surface Rust Efficient Removal
Product Description
Our SWT Laser cleaning machine has the advantage of high cleaning speed, no pollution to the environment,non damage to the substrate,easy operation and low operation cost.It will just use some electricity. The maintenance is free,the laser source has long lifetime up to 100,000 hours.If use 8 hours per days, you can use the machine for 30-40 years.That is why laser cleaning is taking place of many traditional cleaning methods.Like dry ice cleaning,mechanical grinding,chemical cleaning and high-pressure water cleaning.
Our small handheld laser cleaning machine is a device that uses laser technology to remove contaminants, rust, paint, and other unwanted substances from surfaces. The laser beam emitted by the machine is absorbed by the surface, creating a reaction that vaporizes the unwanted material without damaging the underlying surface.
Machine features: high cleaning efficiency,nice and even finishing.no damage to the target material. different laser sources can be selected according to the target application,which allows a wider range of applicable matenals and industries. online real-time monitoring technology with multi sensor fusion can monitor the cleaning effect in real time. laser cleaning head is portable to be held by hand,it also can co-work a robot or CNCmotion system automatically. laser cleaning system is highly reliable and maintenance free.
Parameters:

Model	SWT-QX100	SWT-QX200	SWT-QX300	SWT-QX500	SWT-QX100
Pulse Frequency	1-2000HZ
Cooling Method	Air cooling or water cooling
Power Supply	AC220 V-380 V
Weight	Host:60-230KG / Laser cleaning head: 0.8KG
Cleaning Mode	Hand-held / automation(optional)
Laser wavelength	1064nm-1080nm
Power Consumption	800-1000W
Ambient Environment	5-40ºC
Pulse Width	10-400ns
Power	100W	200W	300W	500W	1000W
Focal Depth	10mm
Host Dimensions	700*400*800mm

Application:
Laser deaning is a new generation of non-destructive surface treatment high-tech products.Because of its easy installation and operation,availability of automation portable cart design,durable and compact structure,it's now widely applied in removing of oil/rust/coating/painting/oxide on metal surface,stone building surface attachment,rubber tire mold residue,and etc.Laser cleaning is considered to be aneffective and eco-friendly way of surface cleaning compared to traditional chemical or mechanical way.
Comparison with Traditional Clean Methods:

Comparison	Laser Cleaning	Chemical Cleaning	Mechanical Grinding	Dry ice cleaning
Washing Method	non-contact cleaning	contact cleaning	Abrasive contact cleaning	non-contact cleaning
Harm to base material	None	Yes	Yes	None
Washing Efficiency	High	Low	Low	Mid.
Consumable	Power	Chemical Detergent	Abrasive paper, grinder, abrasive stone	Dry Ice
Washing result	Very good, very clear	Medium, uneven	Medium, uneven	Good, uneven
Precision Washing	Accuracy controllable. High precision	Uncontrollable, low precision.	Uncontrollable, medium precision.	Uncontrollable, poor precision.
Safety/Environment	No pollution	Chemical pollution	Dust pollution	No pollution
Operation	Easy to operate, portable or automation optional.	Complicated process, higher technical requirement of the operator. Pollution prevention measures required.	Need more time & manpower. Pollution prevention measures required.	Easy to operate, portable or automatic.
Investment	High investment on machine. But no consumable, low maintenance cost	Low investment on machine. But expensive consumables	Medium investment on machine. High man-power cost.	Medium investment on machine. High consumable cost.

Company Profile

Certifications
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
