Automatic Yarn Dobby Rapier Sample Weaving Loom with 12 , 16 , 20 , 24 inches for selection

Product Description

Product Description

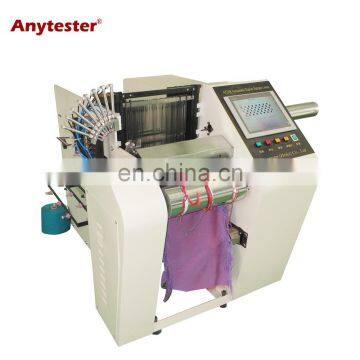

Product DescriptionProduct Application.AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc. Specifications Reed width 12inches (16, 20, and 24inch, optional) Yarn linear density range 5~500tex Weft density 30~45weft/min, selectable No. of heald frame 4~20 Color selection 8 color, automatic pneumatic control Let-off Active electronic control Take-up Motor control Shedding Dobby shedding, pneumatic control Beating-up Motor control Air pressure 0.45~0.8Mpa Air consumption Max. 200L/min Power A220V 50Hz, single-phaseDetails & Features PLC control touch screen with 2G memory capacity to store designed patterns;  Designable and editable patterns and USB interface to share designed patters;  Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;  Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure; Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics; Heald frames up to 20pcs, easy to mount and dismount; Automatic pneumatic selection of weft yarns up to 8 colors;  Professional software for designing or editing patterns;Packing & Delivery Packaging Size 140(L) * 100(W) * 180 (D) Weight 200 Kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products HY1006 lab spinning machine HY1002 Lab carding machine HY1004 Lab drawing machine HY1007 Two for one twisterContacting us ERIC QIN Website Mobile Phone +86 188 5510 5986 Whatsapp +86 188 5510 5986 Skype eric-qlk Wechat +86 188 5510 5986Payment Payment Term T/T EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance, paid the balance against copy of B/L CIF L/C L/C amount above 50,000 usd, we can accept L/C at sight West Union Amount lower than 5000usd West Union Delivery Time 7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertifications
