Garlic Sugar Pepper Grain Herbal Leaf Herb Flower Vegetable Crushing Grinding Machine Grinder for Food

Product Description

Garlic sugar pepper grain herbal leaf herb flower vegetable crushing grinding machine grinder for food Introduction

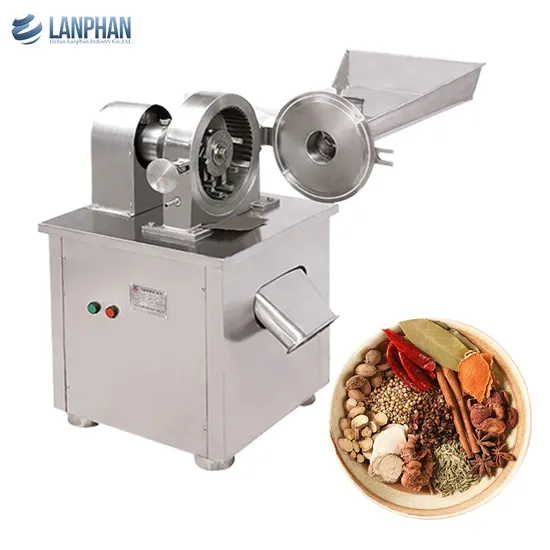

The pharmaceutical pulverizer utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk to crush the pulverized object by the combined effects of tooth impact, friction, and material impact. This machine is simple and firm in structure, stable in operation, good in crushing effect, and the crushed material is directly discharged from the pulverizing room. The particle size can be achieved by selecting screens with different apertures.
The inside of the casing is machined to a smooth surface, which has changed the previous phenomenon of rough and powder accumulation on the inner wall of the machine, so that the production of medicines, foods, and chemicals can better meet national standards.

Parameter

Model	Processing capacity(kg/h)	Rotating speed(r/min)	Feeding size(mm)	Crushing particle size(mesh)	Power(kw)	Package dimensions(mm)	Weight(kg)
LF-20B	60-150	4500	6	60-120	4	550*650*1200	150
LF-30B	100-300	3800	10	60-120	5.5	600*750*1350	210
LF-40B	160-800	3400	12	60-120	11	700*850*1550	350
LF-50B	300-1000	2900	15	60-120	15	800*870*1780	500
LF-60B	500-1500	2900	15	60-120	22	900*900*1910	760
LF-80B	600-2000	2000	15	60-120	30	1000*950*2100	1000

Structural Features
The powder collection chamber of this machine adopts a fully enclosed sound-absorbing structure, which can effectively reduce the working noise. This machine is made of SS321 stainless steel material, which has strong wear-resistant and corrosion-resistant characteristics, and is suitable for processing advanced and corrosive materials. This machine adopts the impact crushing method, after the material enters the pulverizing room, it is impacted by six movable hammers rotating at a high speed, and crushed after the ring gear and the material collide with each other. With the help of the airflow, the crushed material enters the powder bag through the sieve, leaving no residue.
This machine has the advantages of high efficiency, low noise, reliable working performance and product quality, safe operation, sanitation and low consumption.
Scope of Application This machine is suitable for the crushing of various types and small batches of Chinese herbal medicines, precious medicinal materials, ores and chemical raw materials in medicine, agriculture, food, chemical, alloy, metallurgy, geology, scientific research, etc. It is especially suitable for crushing dry brittle materials.
Matters need attention
1. Before use, check whether all fasteners of the machine are tightened and whether the belt is tensioned.
2. The rotation direction of the spindle must be in accordance with the direction of the arrow shown on the protective cover, otherwise it will damage the machine and may cause personal injury.
3. Check whether the electrical appliances are complete.
4. Check whether there are any hard objects such as metal in the pulverizing room of the machine, otherwise the cutters will be damaged and the operation of the machine will be affected.
5. The purity of the materials must be checked before crushing, and no hard metal impurities are allowed to be mixed in, so as to avoid breaking the cutter or causing burning and other accidents.
6. The oil cup on the machine should be filled with lubricating oil frequently to ensure the normal operation of the machine.
7. Stop feeding before stopping the machine. If you do not continue to use it, remove the leftovers in the machine.
8. Regularly check whether the cutter and the sieve are damaged. If damaged, it should be replaced immediately.
9. The machine body will vibrate slightly when in use. Be sure to tighten the cover connection handle to avoid accidents.
