High Quality Plumbing Tube Pn12.5/Pn16/Pn20/Pn25 Hot Cold Water Plastic PPR Pipe

Product Description

Product Description 1. Description of High Quality Ppr Pipe With Korea Material

Name	deso pp-r pipes
Color	green, white, gray, blue
Llength	4m straight length or according to customer requirement
Material	ppr
Pressure	High pressure
Service life	50 years

Permissible working pressure and longevity

	Working pressure(bar)	Temperature	Working year(H/Y)
Cold water	0 to10 transient	To 25	8760
Hot water	0 to10 transient	To 60	8710
		To 80	50

For Potable Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)

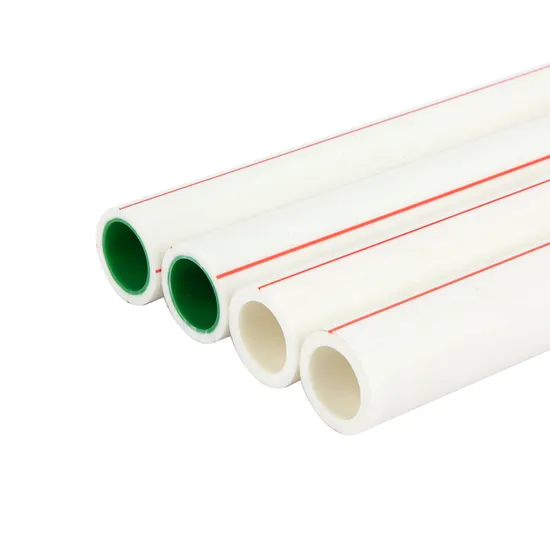

2. Pictures Of High Quality Ppr Pipe With Korea Material




Hygiene&Health Concerns

Deso ppr products are manufactured with health concerns in mind.all deso ppr products must comply with following stipulates and requirements:
Din8078	pp-r pipes, quality requirement and general testing description
Din16962	connection of pp-r pipes and fittings
Din1998t2	Portable water supply system,material,ingredient,application,design,installation
Din2999	rules for fittings with threaded metallic inserts
ISO9001	international quality management system

Click:If you want PN12 and PN12.5,please contact me.

3. More Products To Choose

4. Our Exhibitions
5. Quality Control Of Products


Production process
Automatic feeding → Melting → Vacuum sizing → Extrusion molding
↓
Fixed length cutting←Caterpillar traction ←Marking ←Vacuum cooling
↓
Product inspection → Packing

Strict Inspection&Testing

1	Material Characterization Tests
2	Melt Flow Rate Testing
3	Dimensional Tests
4	Surface Inspection
5	Impact Strength Testing
6	Long Term Hydrostatic Pressure Testing
7	Aging Resistance Testing
8	Thermal Circulation Testing
9	Longitudinal Reversion Testing
10	Hygienic Inspection

6. Packing Of Products

7. Certification Of Products



DESO HOLDING GROUP CO., LTD is located in WenZhou city, zhejiang province, Established in
2004,Our company majority engaging in design, manufacturing, marketing in PPR pipe and fittings
for water supplier, PVC -U pipe and fittings , PVC electrician pipe and fittings, various kinds of wires
and cables.
