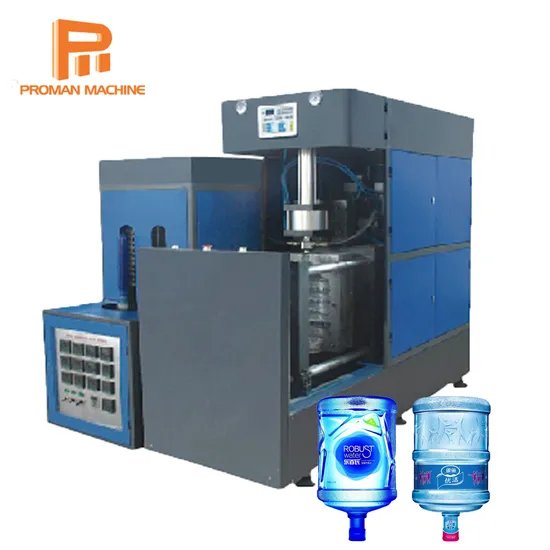

120bph Semi Automatic 5gallon Pet Preform Extrusion Blow Mould Molding Machine
| US$7,500.00-14,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PM
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Semi-Automatic
Computerized
Computerized
Certification
CE
Material
SS304
Certificate
CE,ISO,SGS
Electrics
Siemens,Mitsubishi,etc.
Exchange Parts
Free
Transport Package
Wooden Case
Specification
2.1m*0.7m*1.9m
Trademark
Proman
Origin
China
HS Code
8422301090
Production Capacity
100machines/Year Blowing Machine
Product Description
120BPH Semi Automatic 5Gallon PET Preform Extrusion Blow Mould Molding MachineProduct Introduction
1.Semi-automatic 5gallon blow moulding machine is especially used to produce 3 gallon to 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
2.Perfect function with economic investment.3.Small size and compact construction with no space waste.4.Easy to operate and maintain, operation by one person.5.Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. 6.Providing high pressure blowing system.7.We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
Technical Parameter
| Model | KM-12 | KM-98 | |
| Container | Product material | PET | PET |
| Volume(I) | 10-25(3-5gallon) | 5-10 | |
| Theoretical output(pcs/h) | 60-180 | 250-400 | |
| Height(mm) | ≤500 | ≤390 | |
| Preform inner diameter(mm) | ≥φ16 | ≥φ16 | |
| Mould | max.Mould plate diameter(L*W)(mm) | 420*500 | 470*500 |
| max.Mould thickness | 400 | 370 | |
| Clamping force | 330 | 100 | |
| Mould opening stroke | 318 | 350 | |
| Main machine(L*W*H) | 2180*770*1960 | 1930*720*1830 | |
| Machine size and weight | Main machine weight | 1000 | 800 |
| Heater(L*W*H) | 2370*680*1650 | 18708630*1450 | |
| Heater weight(kg) | 380 | 250 | |
| Power(kw) | 40 | 175 | |
