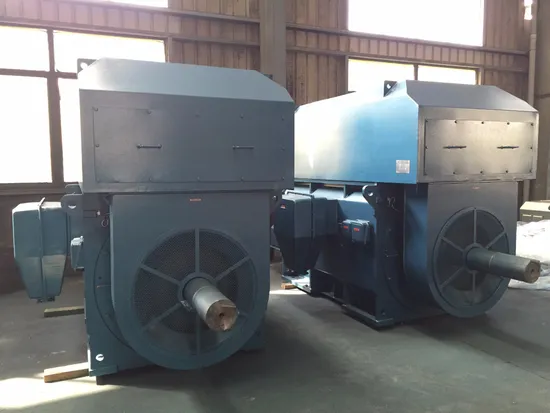

300 HP NEMA Tefc Motor
| US$600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SEMC
Number of Stator
Three-Phase
Excitation Mode
HB-Hybrid
Function
Control
Number of Poles
4
Operate Mode
Three-Phase Six-Step
Type
Magnetic-Electric
Certification
ISO9001
Brand
Semc
Color
Blue
Transport Package
Plywood
Specification
50kg
Trademark
semc
Origin
China
HS Code
8501109990
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
600.00cm * 600.00cm * 600.00cm
Package Gross Weight
500000.000kg
Product Description
| Technical Data Sheet | ||||
| Customer : Project: | ||||
| No. | Definition | Data/unit | note | |
| 1. | Item | NEMATE FC Motor | ANS112.51-2002 | |
| 2. | type | HN 449TS-4 T2Z3 | ||
| 3. | Mounting | B3 | ||
| 4. | power | 300HP _ | NEMA MG 1-2014 | |
| 5. | Service factor | 1.15 | ||
| 6. | Power factor | 0.90 cos q) | ||
| 7. | duty | S1 | ||
| 8. | Voltage | 380V _ | (+/- 10%) | |
| 9. | Frequency | 60Hz _ | ||
| 10. | Rated speed | 1786 r.pm | ||
| 11. | Rel. Torque | 722.3 Nm. | ||
| 12. | Current | 396A _ | ||
| 13. | NEMA Design | L | ||
| 14. | NEMA Code | G | ||
| 15. | Locked rotor current | 2150A _ | ||
| 16. | Locked rated torque | 170 % | ||
| 17. | Maximum rated torque | 220 % | ||
| 18. | Efficiency - 1 00% | 95.8 % | ||
| 19. | Efficiency-75% | 95.8 % | ||
| 20. | Isolation Class | f | ||
| twenty one. | Temperature rise Class | B | ||
| twenty two. | Ambient Temperature | -15...+50 °C | ||
| twenty three. | Altitude | 1000 m.asl | ||
| twenty four. | Protection | IP55 | ||
| 25. | Coolinq | Fan Cooled-IC411 | ||
| 26. | Bearings | 6322-C3 / 6322-C3 | SKF deep groove ball bearing | |
| 27. | Housing | cast iron | ||
| 28. | Terminal Box | LHS viewed from DE side | ||
| 29. | Sound pressure level Lpa / Lwa | 76 / 88dB _ | +3dB | |
| 30. | Moment of inertia J=1/4 GD | 3.848 kg m2 | ||
| 31. | Direction of rotation | CW//CCW | ||
| 32. | Weight | 1200kg _ | ||
| 33. | origin | Switzerland | ||
| 34. | Additional Information | 3 PTC Thermister | ||
| Ex Motors | ||||
| 35. | EEx type of protection | |||
| 36. | Certificate No. | |||
| 37. | Te-Time | |||
| Options / Definition | ||||
| - Anti-condensation heater 1 Phase, 100Watt, 230V, 60Hz | ||||
