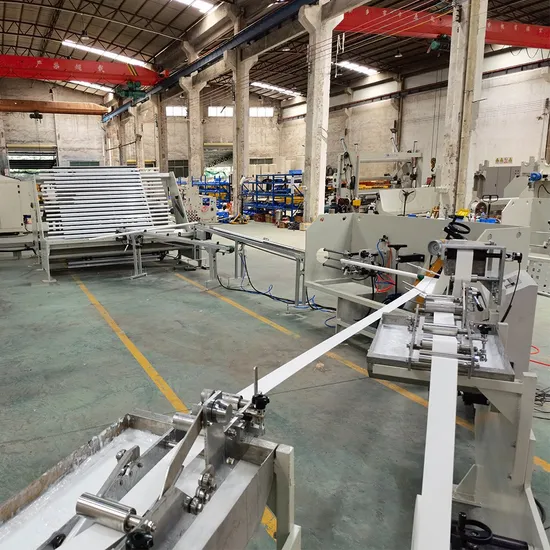

Full Automatic Paper Core Tube Making Machine Manufacturer Factory Price

Product Description

paper core making machine Machine design parameters

No.	Item	Technical parameter
1	Working speed	40~60m/min(Paper core output speed);
2	paper core dia	¢38~50mm;(Designated by the customer)
3	jumbo roll width	60-90mm;
4	jumbo roll gram	180~380g/m²;
5	The layer number	2-4Layers 2-4 are optional;
6	Maximum core thickness	2mm;
7	Paper core length deviation	±2mm;
8	Paper core forming mode	,Vertical, flat belt pressure winding;
9	Pipe cutting way	Cylinder control cutting;
10	Working mode of cutter	Adopt guide rail type cutting;
11	Paper core length adjustment	Touch screen to adjust;
12	Lubrication system	Lubrication device for the first paper ;
13	back stand	2-4,:¢1000mm2-4 groups of base paper rear frame, maximum diameter: ¢1000mm;
14	jumbo roll fixing method	Insert fixed shaft;
15	Glue device	Manual device can stop the machine and separate the paper from the sizing wheel automatically;
16	power	7.8KW;
17	Minimum pressure requirement	0.6Mpa
18	Air Consumption	1/About 1 cubic meter per hour
19	Machine weight	1500KG
20	drive	Independent motor drive
21	protective	All the main transmission parts should be protected with protective cover

Paper core holder

No.	Item	Technical parameter
1	MAX jumbo roll width	2850mm
2	Design speed(PC/min)	30
3	Transmission of paper core	,280The chain board machine lifts the paper core into the paper core hold, which can hold 280 paper cores
4	The whole machine structure	Steel plate connected structure
5	Detection of paper core	With two sets of paper core detection system
6	power	3KW
7	Min pressure requirement	0.6Mpa
8	Air Consumption	About 0.5 cubic meter per hour
9	Machine weight	2500KG
10	drive	Independent motor drive
11	protective	All transmission parts should be protected with protective cover

RECOMMENT PRODUCT: TOILET PAPER PRODUCTION LINE
Company Profile IMAKO is a company entirely focused on the manufacture of automated packaging equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production and toilet paper packaging needs. To become a global packaging machine manufacturer, we also provide full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer. we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
IMAKO power comes from three aspects:
A professional team with rich practical experience in serving customers in the household paper industry for many years!
Provide customers with continuous and stable technical support and assistance!
Always adhere to a strong, innovative and leading corporate culture!
Nothing is the best but can be better and better. Choose our products to give you the best experience!

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country.
FAQ

Q 1. Where is your factory located?

A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

Q 2. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q 3: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q 4:How could i contact you if any problem there?

A: Send us email or leave us message, we will contact you as soon as possible.
