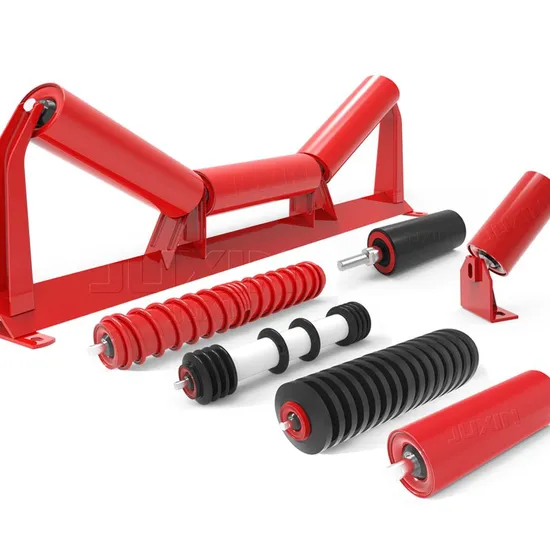

Roller for Conveyor with High Production Capacity Conveyor Lagging Roller
| US$5.00-15.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
JX-CR-M359
Structure
Ordinary Roller
Bearing Type
Single Sealed Bearing
OEM
Acceptable
MOQ
100
Standard
Cema, JIS, BS, as, DIN
Waranty
2 Years
Certificate
CE, ISO, BV, SGS
Surface Treatment
Painting & Galvanized
Seals
Labyrinth Sealing
Welding
Mixed Gas Shielded Arc Welding
Life Time
More Than 30000 Hours
Color
as Required
Transport Package
Wooden Case
Specification
customization
Trademark
JUXIN
Origin
Hebei, China
HS Code
84313900
Production Capacity
100000 Per Month
Packaging & Delivery
Package Size
110.00cm * 100.00cm * 70.00cm
Package Gross Weight
30.000kg
Product Description
Product Description
| Description | CEMA, DIN, JIS, AS, SABS, ISO Standard Design & JUXIN ODM |
| Pipe | 1) Material : Q235 carbon steel equal to DIN S235JR 2) Roller Diameter : φ63.5mm ~ φ219mm / 2 1/2 inch ~ 8 5/8 inch 3) Roller Length: 150mm ~ 3000 mm 4) Thickness : 3.0 ~6.0 mm |
| Shaft | 1) Material : 45# steel equal to DIN C45 2) Cold-drawn bright round steel 3) Shaft Diameter: 20mm, 25mm, 30mm, 40mm, 45mm, 50mm |
| Bearing | 1) Single Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance 2) Brand: SKF,FAG,NSK,HRB, LYC, ZWZ or according to your requirement |
| Bearing Housing | 1) Material : Q235 carbon steel equal to DIN S235JR 2) Cold press working fit ISO M7 accuracy 3) Material thickness: 2.5mm ~ 5.0mm |
| Seals | 1) Labyrinth seal, nylon 6 material 2) JUXIN's patented product |
| Grease | 2# Lithium grease lubricant |
| Painting | 1) Ordinary painting, hot galvanized painting, Powder painting 2) Color: Black, red, yellow, blue or according to your requirement |
Packaging & Shipping
Company Profile
| Q: What is the MOQ? A: 10 sets for idlers;1 pcs for pulley. |
| Q: What is your delivery time? A: 15-20days after receiving the deposit. |
| Q: What is the payment term? A: 30% T/T in advance, then 70%T/T before shipment. |
| Q: Whether customization is supported? A: We accept customization. |
| Q:Can I get a sample for testing ? A:Yes, sample is available for free.But we don't bear the Express cost. |
