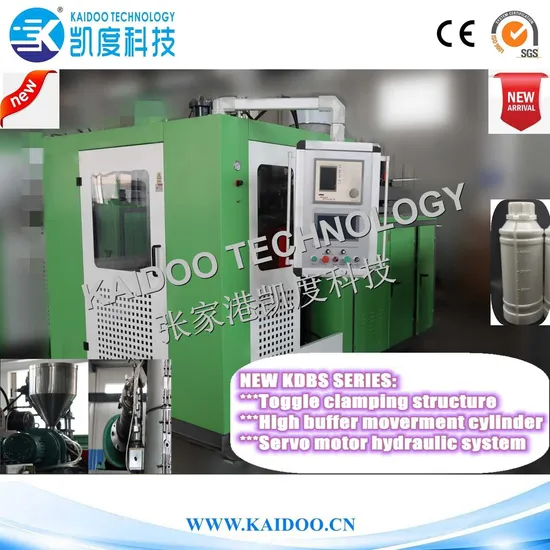

New 2L (Single station & Single head with Transparent line & Toggle clamping & servo motor & High buffer cylinder) Blow Moulding Machine / Blow Molding Machine

Product Description

BRIEF INTRODUCTION
------------ZHANGJIAGANG KAIDOO PLASTIC TECHNOLOGY CO.,LTD
Kaidoo Technology is located in the beautiful Riverside City - Zhangjiagang. The company use European and American technology, supply automatic blow molding machines,(suitable for the production of 5ML-3000L plastic bottles, plastic buckets, drum,tool box, toys, fuel tanks,table panel,plastic pallet,automobile part and other products), and supply Blow mould ,Injection mould,Auxiliary equipment. The company has a a large number of outstanding skilled workers and engineers with more than 10 years of design and manufacture of various hollow equipment and maintenance services experience.
We firmly believe that only the innovation can promote development, and only through cooperation we can find win-win solution. We are sincerely looking forward to working with you full cooperation!
ENTREPRISE CULTURE
Kaidoo Technology persisted "the talented as well as the staff is the first resources" idea,and "the science and technology is the development of the enterprise source power, the innovation is enterprise's soul" the management idea,in the staff the positive initiative "the unity cooperation,grows together" the team idea ;The initiative " the good faith, is highly effective, is satisfied" the service idea,carries out "the autonomy from, asks really to strive for realism" the staff personal integrity. Through a serious of enterprise culture construction, establishes one to have the cohesive force and the team cooperation spirit, the study high quality staff troop.
WORKSHOP
MACHINE SPECIFICATION

MODEL	KDBS50-1T (Single station & Single head with Transparent line & Toggle clamping & servo motor & High buffer moverment cylinder )
	The NEW series is single station mold-moving machine, high efficiency and stability, suitable for making max 2L containers in small batch production. It adopts central-incoming extrusion die head which can be divided into single layer, double layer and transparent line type. ---Adopt toggle-clamping structure ; Even & strong clamping force and big mould-fixing plate ; ---Adopt high buffer movement hydraulic cylinder; High-speed and stable running ; ---Adopt servo motor hydraulic system ; High speed / Stability / Energy saving / Lower oil temperature;

Specification	Technical Parameter
Machine model	KDBS50-1T
Material	PE,PP
Max container capacity	2Liter
Machine Dimension (LxWXH)	3.1 x1.7x2.4 m
Machine weight	3.2T
Clamping Unit
Mould platen size (WxH)	300x335mm
Platen opening stroke	130-370mm
Max mould size (WxH)	300x335mm
Clamping force	46KN
Power
Oil pump driving power	5.5KW
Max driving total power	16.5KW
Blow pressure	0.6Mpa
Air consumption	0.4M3/min
Cooling water pressure	0.2-0.3Mpa
Water consumption	50L/min
Average energy consumption	11-14kw
Extruder unit
Screw diameter	50
Screw L/D ratio	24:1
Melting capacity for HDPE	35 kg/hour
Number of heating zone	3 zone
Screw heating power	10.8kw
Extruder motor power	11kw
Die head (single head)
Number of heating zone for single die head	3 zone
Heating power for single die head	5.2KW
Max die-pin diameter	75mm
