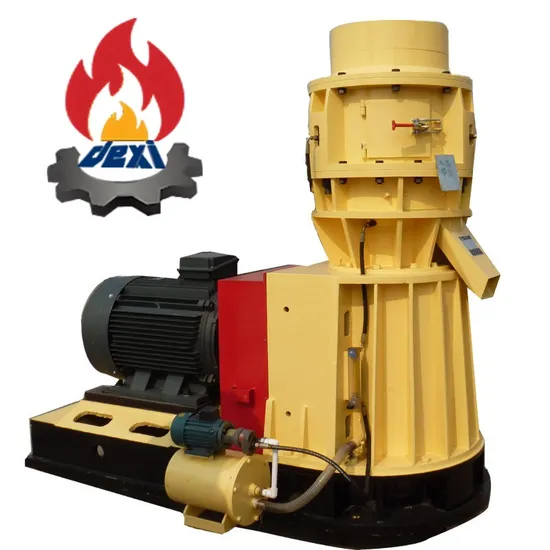

Animal Faeces Organic Fertilizer Pellet Machine Skj3-350 800-1200kg / H

Product Description

Animal Faeces Organic Fertilizer Pellet Machine Skj3-350 800-1200kg / H
Product Description
Our company has introduced into Germanic advanced pellet pressing technology, inventing the taper-shape roller series flat-die pellet mills. They can make pellets (2-8mm), which is mainly applicable to crude fiber granulation, such as: Sawdust (especially for soft wood sawdust), cotton stalk and all kinds of crop straw, home wastage, the worn out plastic and the factory reject, the material of low adhesion rate and difficult to forming, they also can be applied to low temperature pelleting, such as:biological fertilizer, organic fertilizer, compound fertilizer. It is especially confirmed to the world market of renewable compression biomass energy demand.They are our patent products.

Machine's advantages:
1.Portable four-wheel feed pellet machine.
2.Ideal equipment for household pellet feed production.
3.Powered by high-efficiency motors.
4.Connect the motor and gearbox through a universal joint
5.The gears inside the transmission are identical to those on the truck's rear axle, allowing for easy field repairs.
Product Parameters

Model	Capacity(t/h)	Power(kw)	Pellet diameter(mm)	Weight(t)	Dimension(mm)
SKJ3-350A	0.8-1.2	37/6P	4-8	2.2	1763×610×1780
SKJ3-450A	1-2	55/6P	4-8	4.3	2300×1100×1900
SKJ3-550A	2-3	75/90/6P	4-8	5.5	2200×1000×2200

Detailed Photos
Functions and features: 1. The rollers adopts Taper-shape to make both ends line-speed consistent to die-inner and die-outer. It avoids dislocation friction between rollers and dies, so the dies' lifetime is enlarged. This is significant difference between the similar compression formation machines.
2. It adopts screw-center adjusting pressure structure; The pressed rollers' gap is adjustable. It meets the different materials demand and make sure the pelleting effect.The taper rollers and flat dies have the unique advantages of enlarging the rollers, so they are can not be replaced compared with other related equipments.
3. Larger rollers with wide groove, bear more pressure and abrasion.
4. The machine adopts the high pressure filter lubrication system.
Pellet making process:
Generally, there are two types of flat die pellet mills in the market, the rotating die type and the rotating roller type. The former one has a stationary roller with the rotating die while the latter has a stationary die with a rotating roller. Adopting vertical principle, the raw materials drops down by the its own weight into the pelletizing chamber where they are compressed between the rollers and die to form pellets by going through the die holes.
Application:
The pellets produced by the organic fertilizer pellet machine pass through the ball shaping machine to achieve the desired organic fertilizer
Certifications:
Packaging & Shipping
1-Plastic film to package the wood pellet machine.2-Loading into container.3-Fix the machine into container by steel wires or steel ropes.4-We also can make special packing based on customer's demand.
Company Profile
why choose us:

Shandong Dexi Machine Co., Ltd is professional supplier for the biomass pellet machines and complete pellet production line. our products involve , wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other related auxiliary equipment.

We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.

Any interesting for the wood pellet making machines, please feel free to contact us.
