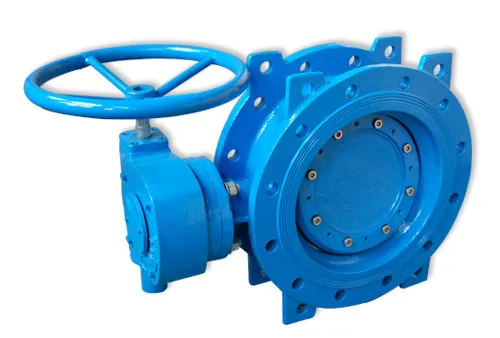

Butterfly Valve Pn16 Dn150-Dn1800 Double Flange Double Eccentric Soft Sealed BS5163
| US$100.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z341X-16
Connection Form
Flange
Structure
Double-Eccentric Sealing
Seal Form
Force Sealed
Valve Stem
Normal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Normal Temperature (-40°C<T<120°C)
Material of Seal Surface
Soft Sealed
Valve Body
Casting
Standard
BS DIN
Application
Industrial Usage, Water Industrial Usage
Painting
Epoxy Power
Face to Face
En558-13/14
Flange Dimensions
DIN2501
Color
Ral5015 Blue
Transport Package
Plywood Case
Specification
DN150-DN1800
Trademark
OEM
Origin
China
HS Code
8481804090
Production Capacity
50000PCS/Year
Product Description
Butterfly valve1.Design standard: EN593
2.Face to face :DIN3202/BS5155
3.Body/Disc:GGG50 with internal and external epoxy resin coating
4.Stem:2Cr13/SS304/SS316
5.Sealing :EPDM
Butterfly valve
Design standard: EN593
Face to face :DIN3202/BS5155
Body/Disc:GGG50 with internal and external epoxy resin coating
Stem:2Cr13/SS304/SS316
Sealing :EPDM
