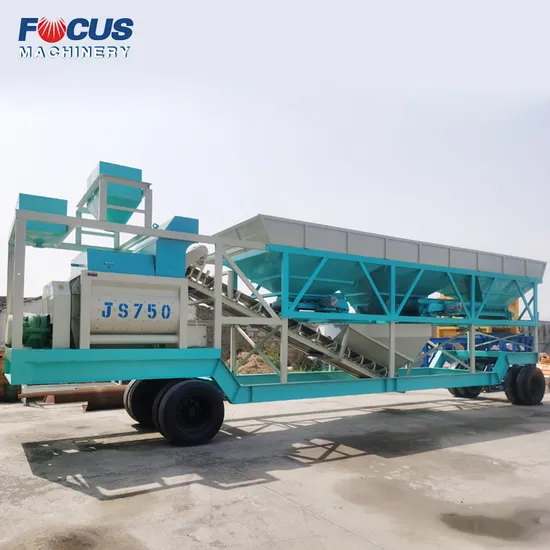

25m3/H 35m3/H 50m3/H 75m3/H Portable Mobile Concrete Mixing Plant for Sale
| US$30,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YHZS35 Mobile Concrete Mixing Plant
Shotcrete Type
Wet
Machining Process
Automatic Controlled Production Line
Structure
Spiral Type
Productivity
35m²/h
Feeding Height
1380mm
Vibrating Amplitude
1.6mm
Certification
CE, ISO9001: 2008
Condition
New
Color
as Request
Output Capacity(Cbm/H)
35
Mixer Power
30kw
Mixer Volume
750L
Charging Volume
1200L
Controlled Method
Full Automatic Computer Control
PLC
Omron or Siemens Make
Electrical
Schneider
Aggregate Feeder
Belt Conveyor
Cement Silo
50/100t Bolted Type
Power Source
380V, 50Hz, 3 Phase
Total Weight
28t
Total Power
75kw
Dragging Way
360 Degree Bayonet
Name
Portable Mobile Concrete Mixing Plant for Sale
Transport Package
Standard Packing of Concrete Plant for Internatio
Specification
overall power: 60kw
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
8474310000
Production Capacity
20 Sets Per Month
Product Description
25m3/H 35m3/H 50m3/H 75m3/H Portable Mobile Concrete Mixing Plant For SaleProduct Description
Portable mobile concrete mixing plant is suitable for production and supply of ready-mixed concrete, construction of engineering projects or large and medium-sized concrete precast factory. Special for the construction projects and easy to transfer job site.
Detailed Photos
Adopt double shaft concrete mixer, the mixing arm has high wear resistance and strong impact resistance. The mixer saves time and energy and mixes evenly.
Adopt PLD series dosing machine, 2-4 bins are optional, and automatic unloading. Electronic weighing with an accuracy of 2%.
Smooth operation, automation, centralized control, continuous transportation and other advantages. Excellent material selection, using double-layer structure bucket belt and herringbone belt to choose from (Can be made according to the actual needs of customers).
Remote management, intelligent control, equipment with alarm correction, operation monitoring and other functions.
LSY219, LSY273 and LSY325 screw conveyors can be made according to the needs of the site.
The main structure is made of O235 high-quality carbon steel, which has good toughness, strong bearing capacity, corrosion resistance and is not easy to break
Product Parameters
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
| Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h |
| Mixer Model | JS500 | JS750 | JS1000 | JS1500 |
| Mixer Power | 18.5Kw | 30Kw | 37Kw | 2*30Kw |
| Discharge Height | 1500-3800mm | |||
| Discharge Volume | 500L | 750L | 1000L | 1500L |
| Charging Volume | 800L | 1200L | 1600L | 2400L |
| Mixing Cycle | 60S | |||
| Max. Agg. Size | 80/60mm | |||
| Loading Way | Belt conveyor | |||
| No. of Storage Hopper | 3 | 3 | 4 | 4 |
| Agg. Silo Capacity | 4m3 | 4m3 | 5m3 | 5m3 |
| Agg. Weighing Accuracy | 2000Kg±2% | 2000Kg±2% | 4000Kg±2% | 4000Kg±2% |
| Water Weighing Accuracy | 200Kg±1% | 200Kg±1% | 250Kg±1% | 300Kg±1% |
| Cement Weighing Accuracy | 250Kg±1% | 300Kg±1% | 500Kg±1% | 600Kg±1% |
| Additive Weighing Accuracy | 25Kg±1% | 25Kg±1% | 30Kg±1% | 30Kg±1% |
| No. Of Wheels | 2 | 2 | 2 | 2 |
| Dragging Way | 360 Degree bayonet | 360 Degree bayonet | 360 Degree bayonet | 360 Degree bayonet |
| Control System | Fully automatic/Manual | |||
| Total Power | 51KW | 75KW | 105KW | 145KW |
| Total Weight | 22t | 28t | 32t | 35t |
