Hbts60 60m3/H Mini Concrete Pump Diesel

Product Description

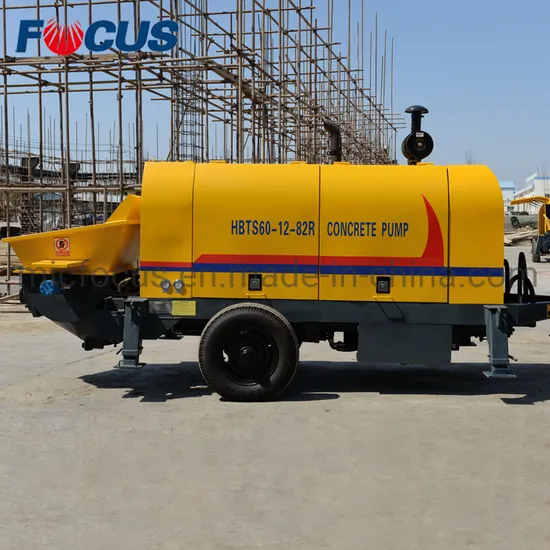

HBTS60 60m3/H Mini Concrete Pump Diesel
1. REXROTH master oil cylinder-no. 1 in the world;
2. DEUTZ diesel engine with 150m high pressure pipings.
parameter

Model Parameter	HBTS60-13-90	HBTS80-13-90	HBTS80-16-110	HBTS40-13-45	HBTS40-13-55
Main oil pump	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea	Kawasaki, South Korea
Displacement of main oil pump (ml / r)	112×2	112×2	140×2	112	112
Hourly workload (cubic)	60	80	80	40	40
Motor Power	90	90	110	45	55
Bore / stroke of main oil cylinder (mm)	Φ125/1650	Φ125/1650	Φ140/1800	Φ100/1100	Φ100/1100
Concrete cylinder bore / stroke (mm)	Φ200/1650	Φ200/1650	Φ200/1800	Φ160/1100	Φ160/1100
Hydraulic hose	Italy Manuli	Italy Manuli	Italy Manuli	Italy Manuli	Italy Manuli
Seal	American Parker	American Parker	American Parker	American Parker	American Parker
Electronic control system	France	France	France	France	France
PLC unit	Omron Japan	Omron Japan	Omron Japan	Omron Japan	Omron Japan
Remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control
Pressure gauge	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany
Button	France	France	France	France	France
Lubrication system	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic
Outlet diameter (mm)	Φ180	Φ180	Φ180	Φ125	Φ125
Piping (m)	150Φ125	150Φ125	150Φ125	120Φ80 or 100Φ125	120Φ80 or 100Φ125

Why would our clients choose FOCUS trailer concrete pump?
FOCUS trailer concrete pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:
1. Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.
2. High quality hydraulic components and valves use German REXROTH.
3. The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the stationary concrete pump are independent to each other, which makes the working system reliable and the changeover steady.
What are the main features of FOCUS portable concrete pump?
*Power system of trailer concrete pump
Main hydraulic pumps are famous German REXROTH products.
Engine: German Deutz
*Electric control system of trailer concrete pump
The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original OMRON, Siemens, LG, etc.
*Hydraulic system of trailer concrete pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
*Pumping system of trailer concrete pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
