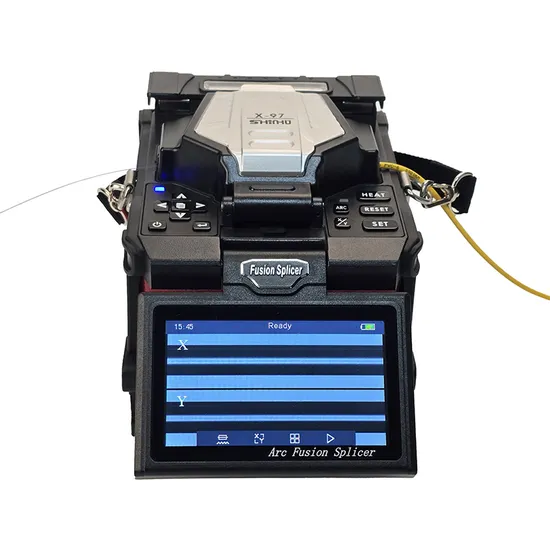

FTTH Tools Optical Test Fusion Splicer Splicing Machine New Fiber Optic Equipment

Product Description

Features: Handheld, Small, Light
Industrial standard screen
Various colors are available
Core to core digital alignment
7s splicing stime, 26s tube heating time
5200mAh and pluggable Li-battery, Typical 250 cycles
ARC calibrated by temperature and air pressure automatically
Automatically switching on windshield and heater in 4 steps
Apply to bare fibers, indoor cables and jumper wires splicing
Multi-Language Sites
Operating Condition
Product Description

Fiber count	Single
Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Typical splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-3000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	7 seconds
Tube heating time	26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	320X(X or Y view), 160X(X and Y view)
Viewing method and	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	8000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery
Power supply	Adaptor, input: AC100-240V(50/60HZ)
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed:
	max 15m/s
Dimension	149mm(L)x120mm(W)x127mm(H)
Weight	1.9kg including battery

Standard Configuration:
Packaging Details:
Carton Size: 43cm x31cm x28cm
Gross Weight: 5kg
Delivery Detail: in 2 days
Delivery leading period:
Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders
Shipment:
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.

After-sales Service:
We guarantee all our single core telecom fusion splicers for 36 months from the date customers receive them. Other parts for six months.
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.
Company Information SHINHO Fiber Communication Co., Ltd is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.our X-series optical fiber fusion splicers have independent IPR. Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects, broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc. Based on years of experiences in optical communication fields, our aim is to provide you excellent fiber optic fusion splicers, and best after-sales service. Hoping we could establish business relations with your esteemed company very soon.
contact us:
shinhofiber.en.made-in-china.com
FAQ
1. Are you the factory or the trade company? We are the original manufacturer, OEM & ODM are also available. 2. Why choose you? *Industry technology leader: More than 20 years experience, keeping upgrading new technology and now models. *Reliable product quality: ISO9001:2015 quality management system, strict quality control and testing process. *Strong production/OEM ability: More than 10,000 units machines sold to more than 50 countries and areas every year, OEM available. * Satisfying after-sales service: Life long technical support, quick feedback to any problem, 24 months warranty period. 3. What is the payment terms? We accept 100% payment in advance. 4. What is the lead time? We will send goods out within 3 working days after receiving payment. For urgent orders, we could offer speed-up service. 5. How do you send goods to us? Usually we send goods out via express (DHL/Fedex/UPS) or by airlines, we will send tracking number and AWB to customers once goods are sent out. For bulk orders, we can also offer sea freight service.
