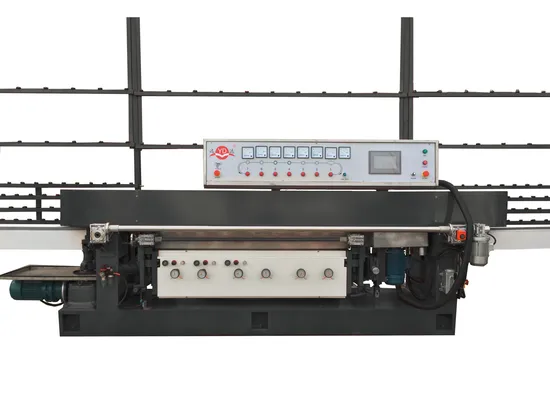

Hot Selling Ceramic Tile Stone Edging and Polishing Machine
| US$7,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YD-SDE series
Type
Stone Grinding Machine, Stone Edging Machine
Control
Artificial, Manual
Automation
Automatic
Precision
High Precision
Application
Ceramics, Glass, Granite, Marble
Type for Grinding Machine
/
Grinding Machine Type
Edge Grinding and Polishing
Grinding Method
/
Certification
CE, CE
Condition
New, New
Machine Type
Vertical Straight Line Stone Edging Machine
Min. Size of Glass(mm)
100 X 100
Dimension(mm)
6500X 1200X 2600
Profile
Flat / Arris
Total Spindles
7
Glass Thickness(mm)
5~20
Glass Speed(M/Min)
0.8~3.5
Power(Kw)
15.5
Weight(Kg)
2600
Structure
Vertical
Control System
Manual
Glass Edging Machine Type
Stone Edging Pmachine
Grinding Head Number
7
Transport Package
Bubble Plastic Bag
Specification
CE
Trademark
YD
Origin
Shunde of Guangdong China
HS Code
84642010
Production Capacity
10sets Per Month
Product Description
Hot selling Ceramic Tile stone Edging and Polishing MachineMain features:
1. Suitable for stone and ceramic edge and 45° arris;
2. Manual, single chip or PLC control system for option;
3. Rough grinding, fine grinding, polishing are done at one pass;
4. Chain or bearing conveying system, stepless/frequency speed adjustment for option.
Warranty: one year
Main Technical Specification:
Model Number | YD-SEM-8 | YD-SEM-9 | YD-SEM-9-45 | YD-SEM-10 | YD-SEM-10(bearing) |
| Total nr.of spindle | 8 | 9 | 9 | 10 | 10 |
| Profile | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris |
| Glass thickness(mm) | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Min.size of glass(mm) | 100×100 | 100×100 | 100×100 | 100×100 | 50×50 |
| Glass speed (m/min) | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~5 |
| Power(kw) | 15.5 | 18 | 18 | 20 | 20 |
| Outer dimension(m) | 6.5×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 7.5×1.0×2.6 |
| Weight(kg) | 2600 | 3000 | 3000 | 3500 | 4500 |
Guarantee and After-sale Service:
*One year guarantee for whole machine.
*24 hours technical support by e-mail.
*Use-friendly English software, user manual and detailed Videos/CD.
*We will provide all spare parts needed for maintenance of the equipment.
*Professional after-sales service team support face-to-face training and installation to customer's factory.
Why choose Ladglass?
1. Widely used in different industry
2. High precision and reputation
3. CE Certificate High quality parts
4. Competitive price
5. Fast delivery
6. Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
