Complete Mineral Drinking Water Processing Filling Packing and Bottling Plant

Product Description

Turnkey Project:
We supply complete solution for the water bottling plant, including water treatment plant, PET bottle blowing machine, washing filling capping machine, code printer, labeling machine, shrink wrapping machine and so on. Product Description

Cooperated Brand:

Detailed Photos

According to customer's raw water analysis report and the final water standard request, we will suggest customer to choose the suitable water treatment plant.

Bottle blowing machine is to make plastic bottles for mineral water, carbonated drink, juice and so on. It is widely used in the food and beverage package industry.

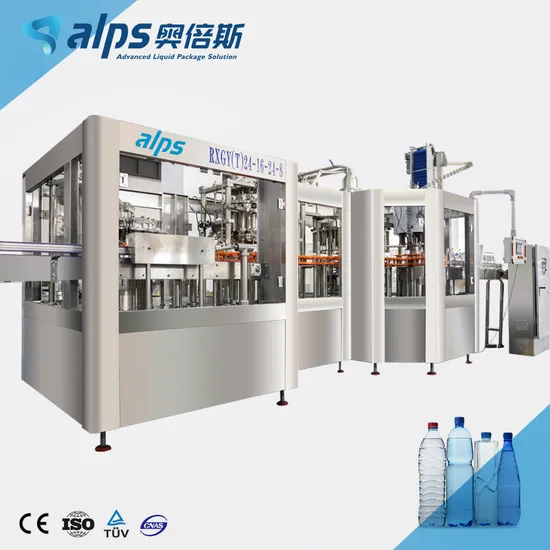

This machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The advanced Mitsubishi programmed controller (PLC) is adopted to control of the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speed and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage manufacturers.

Technical Parameters
Model	CGF8-8-3	CGF14-12-5	CGF16-16-5	CGF24-24-8	CGF32-32-8	CGF40-40-10
Max Capacity	3000bph	4500bph	7000bph	12000bph	15000bph	18000bph
Bottle Material	PET Bottle
Bottle Diameter	φ50-φ116mm
Bottle Height	160-320mm
Air Pressure	0.2-0.8Mpa
Washing Pressure	>0.06MPa, ≤0.2MPa
Rated Power	3.8KW	4.5KW	4.8KW	5.5KW	7.5KW	8.5KW
Overall Size	2200*1600 *2200mm	2400*1880 *2300mm	2800*2200 *2300mm	3050*2400 *2300mm	3800*2600 *2500mm	4000*3150 *2500mm
Weight	2800kgs	3200kgs	4200kgs	5500kgs	6500kgs	7500kgs

There are mainly three kinds labeling machine, PVC sleeve shrink labeling machine, pressure sensitive sticker labeling machine and OPP hot glue labeling machine.

There are mainly two kinds of case packing machine, film shrink wrapping machine and carton packing machine. For film shrink wrapping machine, there is also with for unprinted film and for printed film, then there is also shrink film with carton tray. For carton packing machine, there is tape sealing type and hot glue sealing type.

We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, with less power consumption and space.

Certifications


FAQ

1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment system manufacturer and small bottle water filling & packing machinery with about 10 years experience. Factory covers an area of 12000 square. There have been more than 50 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Donglai town,Zhangjiagang city,Jiangsu province,China. about 2 hours away from PVG Airport . All clients are warmly welcome to visit us !
3.How about installation ?
We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back,accommodation and USD100 / day/person.
4.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale service
5.Q:What is the features of our company?
A: We provide turnkey project for customers, including sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
