Industrial 5g Router Openwrt WiFi6 3000Mbps Mt7981b Dual SIM 4G Modem Routers

Product Description

HUASTLINK HC-G60 VS HUASTLINK HC-G60 PRO

HC-G60		HC-G60 PRO
Chipset	MT7981+MT7975+MT7976	Chipset	MT7981+MT7975+MT7976
Flash/RAM	128MB/512MB	Flash/RAM	128MB/512MB
WiFi	2.4G+5.8G WIFI6 3000Mbps	WiFi	2.4G+5.8G WIFI6 3000Mbps
UART Port	1*RJ45 UART Port	UART Port	1*RJ45 UART Port
WAN	1*10/100/1000Mbps WAN port	WAN	1*10/100/1000Mbps WAN port
LAN	4*10/100/1000Mbps LAN ports	LAN	4*10/100/1000Mbps LAN ports (Provide standard POE power for other devices)
USB Port	1*USB 2.0 port	USB Port	1*USB 2.0 port
SIM Slot	2*SIM card slot (2 esim slot as optional) 2 sim card load balance	SIM Slot	2*SIM card slot (2 esim slot as optional) 2 sim card load balance
Power Port	1 DC power port 2 pin terminal power port	Power Port	1 DC power port 2 pin terminal power port
Power	12V power plug by default	Power	48V power plug by default
Antenna	8pcs omni-directional antennas	Antenna	8pcs omni-directional antennas
System	Openwrt	System	Openwrt
VPN	L2TP, PPTP, Openvpn, Wireguard, Zerotier	VPN	L2TP, PPTP, Openvpn, Wireguard, Zerotier
Feature	APN setting, TTL setting, SMS, Band Locking, Cell Locking, Dual WAN, etc.	Feature	APN setting, TTL setting, SMS, Band Locking, Cell Locking, Dual WAN, etc.

Product Description

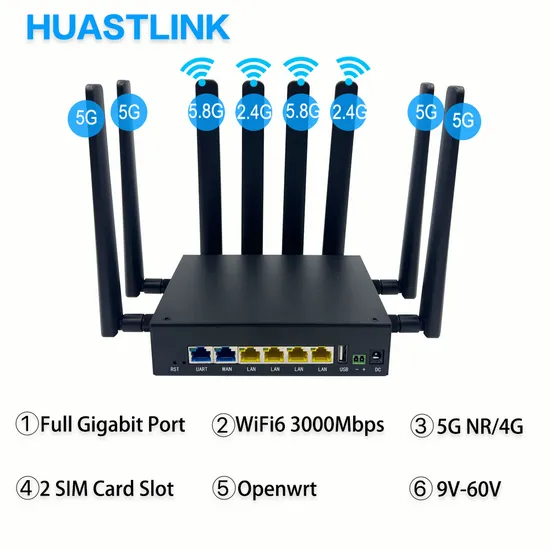

HC-G60 is a Industrial 5G/4G+WIFI6 router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
Product Features
* Using MT7981B solution, ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ
* Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps
* High-speed 512MB RAM, with 128MB SPI NAND Flash
* 1 WAN+4 LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX)
* 1 RJ45 UAR port, 1 USB port
* 1 2pin Terminal port, 1 DC power port, support 9V-60V power
* Built-in M.2/Mini-PCIE standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules;
* External 2 Micro SIM card interface, support 2 SIM card load balance
* External high-gain WIFI antenna, 360-degree wireless signal without dead angle
* Preload openWRT system, support flash customer's firmware
HC-G60 & HC-G60 PRO Version for Customer's choices:
HC-G60 Wifi6 AX3000 Router (Without 4G/5G NO SUPPORT SIM CARD)
HC-G60 Wifi6 AX3000 4G Router (SUPPORT 4G/3G/2G Network)
HC-G60 Wifi6 AX3000 5G Router (SUPPORT 5G/4G/3G Network)
HC-G60 Wifi6 AX3000 POE Router (Without 4G/5G NO SUPPORT SIM CARD)
HC-G60 Wifi6 AX3000 4G POE Router (SUPPORT 4G/3G/2G Network)
HC-G60 Wifi6 AX3000 5G POE Router (SUPPORT 5G/4G/3G Network)---The website Sample Price
Product Parameters

Processor	MT7981B ARM Cortex-A53 dual-core CPU, 1.3GHZ main frequency
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
RAM	DDR3 512MB
Flash	SPI NAND Flash 128MB

Network ports	1*10/100/1000Mbps WAN port, supports Auto MDI/MDIX Conforms to IEEE 802.3/802.3u/802.ab
	8*10/100/1000Mbps WAN port, supports Auto MDI/MDIX Conforms to IEEE 802.3/802.3u/802.ab
	1*RJ45 Console port
	1*USB port
	2*SIM card slots
Power interface	1 DC5.5*2.1MM port, 1 2pins Terminal port, support 9V-60V power
Button	1 Reset button
4G/5G interface	1 *M.2/PCIE Port
Removable Antennas	4* external omnidirectional 5dbi 5G/4G mobile communication antennas
	2* external omnidirectional 5dbi 2.4G wifi antennas
	2* external omnidirectional 5dbi 5.8G wifi antennas

Detailed Photos
Company Profile
Brief: * Professional with many years experience* Have our own factory in Shenzhen,China* Most competitive price from material supplier base on huge orders to them* Experienced an effective inner cost control system through whole processQuality Control:* Raw material test,Online production test,finished product test* Providing relative solution* CE,FCC,RoHS,SGS approved FactoryService:* OEM /ODM service and support* Free promotion material if needed* Clients service one-to-one* Effective communication within 24 hours
Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers. We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, IOT Router, AP/CPE, 4G Outdoor Router, 5G/4G Mifi, 5G/4G Module etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exported to over 40 countries and regions.
Our vision are providing best service to customers.
FAQ
1) Q: Can I have a sample order?
A: Yes, welcome to place sample order order testing and checking, mixed samples are acceptable.
2)Q: What about lead time?
A: Sample needs 1-3 working days mass production time needs 3-5 weeks pased on order quantity.
3) Q: Do you have any MOQ limit?
A: Low MOQ 1pcs for sample checking are available.
4) Q: Do your products meet our standards?
A: Yes, almost all our products have CE FCC etc.
5) How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote accourding to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for format order. Then we arrange production.
6) How do you ship the goods? How long does it take to arrive?
A: We usually ship by All Logistics, DHL, UPS, Fedes, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Air shipment and sea shipment are optional.
7) What is your payment term?
A: We have All pay, T/T, Visa, West Union, Credit Card payment terms options, you can chooe the one which is convenient or effective for you.
8) Can you customizated logo or packaging?
A: Yes, OEM/ODM are acceptable. Our design team help you design as your requirement.
