Huitong Xinda 22kw 37kw 4 in 1 Platform Integrated Air Compressor

Product Description

Product Description Huitong Xinda New Design 22kw 37kw 16bar Industrial Screw Air Compressor

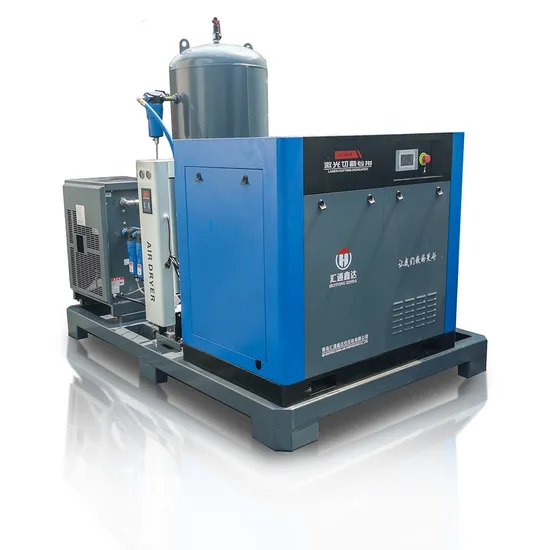

Screw air compressor with air dryer,air tank and air filter.
1.Integrated design, greatly saving cusomer installation cost and use space, beautiful appearance.
2.New modular structure design,compact layout; Ready-to-use easy to move.
3.Integrated piping system reduces unit failures and leakage and greatly reduces pressure loss
4.Direct discharge of dry compressed air, fully ensure the user terminal gas quality.
Detailed Photos 1. PLC adopts color screen:touch op-eration, sensitive action, be equipped withactive protection, alarming, maintenancereminding and automatic 24-hour unattended operation. 2. Air tanks can be customized: volume customization, single and double tanks can be customized. 3. 15kw 1+4 Five-Stage Precision Filters,22kw 1+3+2 Six-Stage Precision Filters,37kw 1+3+3 Seven-Stage Precision Filters:High-precision filtration to meet laser cutting machine air requirements.
4. Permanent Magnet Synchronous Motor: With permanent magnet synchronous motor adopted, the rotor without slips, no electric excitation.no fundamental wave iron, less copper loss and less calorific value, whose efficiency is 5-12% higherthan that of the same capacity asynchronous motor.
5. High Performance Converter:Frequency converter of high perfor-mance makes the operation more stableand carries out real-time vector calcula-tion according to different air delivery. Split Air Compressor
Product Parameters

Model		XV-22/16Q	XV-22/20Q	XV-22/25Q	XV-37/16Q	XV-37/20Q	XV-37/25Q
Displacement	M³/Min	2.6	2.0	1.6	3.6	3.6	3.0
Working Pressure	MPa	1.6	2.0	2.5	1.6	2.0	2.5
Power supply	V/PH/HZ	380V/50HZ/3PHASE OR CUSTOMIZATION
Rate of work	KW	22	22	22	37	37	37
Dimension(mm)	Length	2200			2420
	Width	1400			1900
	Highly	2200			2200
Weight	KG	850			900
Outlet pipe diameter	imch/mm	RC 3/4″			RC 3/4″
Air tank volume	L	600L/Customization			1200L/Customization

Certifications We have CE,SCS,ASME,UL and many other certifications. We can apply for certificates according to your needs
Packaging & Shipping
Company Profile WELCOME TO VISIT US:Qingdao Huitongxinda Air Compressor Co., Ltd. is a professional modern enterprise which specializes in researching & developing, manufacturing and selling Screw air compressor,Nitrogen generators, Blowers.
We have four factories, two air compressor factories and two air storage tank factories.As one of the leaders of air compressor manufacturers in north China. Huitongxinda has well-equipped mechanical manufacturing system. With strictly adopting and following the ISO9001 international quality system certification standards and compressor industry professional modern production and management, the products integrate the highest standard of domestic manufacturing technology. The high efficiency and reliability of each air compressor as well as the advanced technology make it superior to similar products with excellent cost-effective perfomance. What we offer:
1) Good quality control 2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
5) Many experienced engineers
6) Customer and feedback Customer Cases
FAQ Q1: Why customer choose us?A: Qingdao Huitongxinda Air Compressor Co., Ltd. 18 years focus on screw air compressor. We have professional team to support how to choose air compressor.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big three modern factories in Qingdao and one modern factory in Jinan.
Q3: What's your delivery time?
A: Generally 7-15 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One or Two years for the whole machine. In China we are the manufacturer for 10 years warranty.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc.Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8:How about your price?
A: We have different model for your different customers with competive price.
Q9: How about your after-service?
A: 1,We can reply you within 2 hours by email, and welcome to our company to have training. 2, We also can guide you by online for any after service in time.
