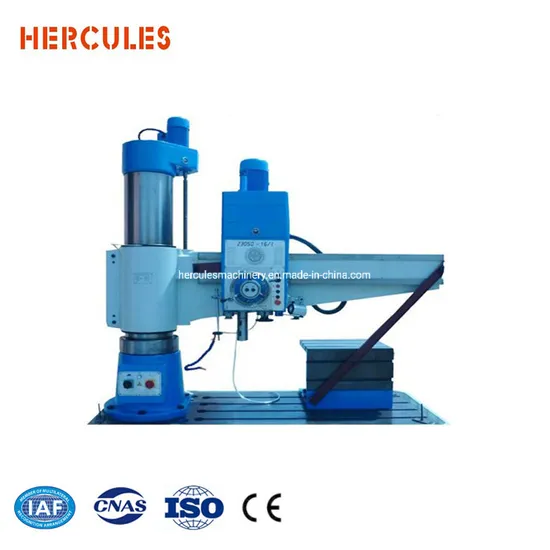

Z3080X25 Taladro Radial Drilling Milling Cutting Tapping Lathe machine
| US$30,000.00-34,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3080x25
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
N.W/G.W
9400/9700 kilos
Transport Package
Wood Pallet
Specification
3600*1450*3300
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month
Product Description
Advantage1. Meehanite® Castings, FC30 fine grain and high density cast iron.
2. Casting with nature annealing and stress release
3. Turcite-B Premium slide Coated
4. Original TAIWAN made gear and shaft
5. Spindle made of Cr-Mo Alloy
| Specification | Unit | Z3080x25/1 |
| Max. Drilling dia. | mm | 80 |
| Distance from spindle nose to table | mm | 330-1585 |
| Distance from spindle nose to table | mm | 500-2570 |
| Spindle travel | mm | 400 |
| Spindle cone | MT6# | |
| Spindle speed range | r/min | 16-1250 |
| Spindle speed step | 16 | |
| Spindle feeding range | mm/rev | 0.04-3.2 |
| Spindle feeding step | 16 | |
| Rocker rotary angle | deg | ±90 |
| Main motor power | kW | 7.5 |
| Movements motor power | kW | 1.5 |
| Machine dimensions | mm | 3600*1450*3300 |
| Machine weith | kg | 9400 |
| Packing dimensions | mm | 3620*1400*1490(wood case) 3830*1230*2180(wood case) |
| Hercules Machinery Equipment Ltd. | ||
Standard Accessories:
1. Keyless drill chuck
2. Connecting rod
3. Reduction sleeve
4. Withdrawl wedge
Pictures for reference only:
