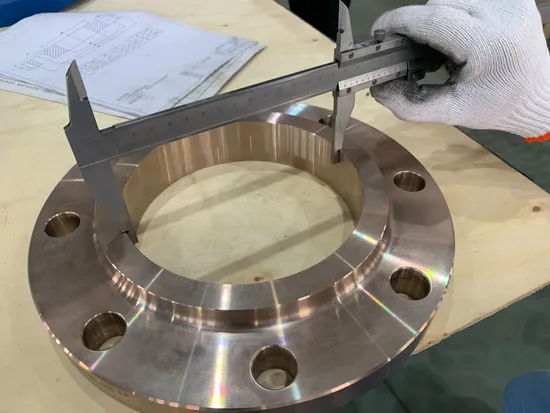

90/10 CuNi Alloy Uns C7060X Flange Wn RF 150#, Eemua 145/ASME B16.5

Product Description

Product Name	UNS S31803 Duplex SS Fittings Lap Joint RF Flange DN 18 Class 300
Size	OD	1/2''-48''
	Thickness	sch40-160
Steel Material	SS2507, A234 AISI B16.5, ASME B16.11, A182, A403
Steel Grade	AISI 304/316, F22, P22, P11, WPB, etc
Process	Smithing, casting.
Usage	Water treatment, High temperature service, Boiler tube, Heat exchange, oil and gas transport, etc
Surface	Black paint, Varnish, 3PE, FBE, Epoxy, Cement lined, varnished, black coating, Jotun paint, Galvanized
End	Plain, Beveled with caps
Package	Seaworthy packing(bundled according to the different size), with plastic bags or plywood box
Inspection	With Hydraulic Testing, Ultrasonic testing or X-ray Test
Certificate	API , ISO9001/2000, CE, URL, CNAS
TPI	TUV, SGS, BV, Lloyd's, etc.
Payment:	L/C at sight, L/C 180 days, T/T, D/P, OA, Western Union
Port of Shipment	Tianjin/Shanghai port in China

Copper Nickel C71500 Details:
Copper Nickel C71500 (CuNi30MnFe1) is a copper nickel alloy with limited additions of manganese and iron to increase the strength. Copper Nickel 70/30 is also insensitive to stress corrosion
Although this alloy was already known by the Chinese in the 9th Century, it did not become popular until the 1920's when it was developed for naval applications in seawater condenser systems
The addition of iron helps grain refining and increases the erosion resistance with flowing seawater.
It retains its strength well at moderately elevated temperatures, has good cold and hot working properties and is easily weldable.
The alloy is now used in a wide spectrum of applications, ranging from piping for seawater, cladding for offshore platforms and underwater cages for fish farming.
Being high in copper Copper Nickel 70/30 has anti-bio-fouling properties in seawater, and more recently, has been proven to have anti-microbial applications in hospital environments to combat the spread viral bacteria.

Cu-Ni Tube Standards	ASTM B111,ASME SB111
Cu-Ni Tube Type	Seamless Copper Nickel Tube
Cu-Ni Material	Cu-Ni 90/10, Cu-Ni 70/30,C70600,C71500,C70400,C68700
Tube Dimensions	OD"5-330 mm WT: 0.4-10 mm Length Range: < 15000 mm
Application:	marine environments, power generation, offshore, oil & gas and defence sectors Drawn copper nickel tube combines cold and hot working properties,highest degree of seawater corrosion and erosion resistance and great strength.Typical users are distillation and desalination plants and marine, coolers and heat exchangers.

Trade Name	UNS	Copper Nickel Industry Specifications	Chemical Composition	Min. Tensile (KSI)	Min. Yield (KSI)	Elongation %
CuNi 90/10	UNS C70600 UNS C70620	ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463	Cu 88.6 min Pb. 05 max* Fe 1.8 max Zn 1 max* Ni 9-11 max Mn 1.0 max	38	15	30
CuNi 90/10	UNS C70600	EEMUA 144 90/10, 145 90/10, 14 90/1	Cu rem. Pb. 01 max Fe 1.5-2.0 Zn 0.2 max P 0.2 max S 0.2 max Ni 10-11 Mn 0.5-1.0	40	15	30
CuNi 70/30	UNS C71500 UNS C71520	ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468 DIN 2.0882 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463	Cu rem (65.0 min) Pb. 05 max* Fe 0.4-1.0 Zn 1 max* Ni 29-33 Mn 1 max	52	18	45
CuNi 70/30	UNS C71640	ASTM B111, B543, B552	Cu rem Pb. 05 max* Fe 1.7-2.3 Zn 1 max* Ni 29-32 Mn 1.5-2.5	63	25	-

2. Products introductionELBOW 90°LR:
Implement Standard:
ASME/ANSI B16.9
GB/T12459-2017 GB/T13401-92
SH3408-96 SH3409-96
JIS B2311-B2313
HG/T21635 SY/T0510
DIN2605
Material Quality Of Product:
304,2205,2520,904L,316L, 304L,321,347,317L,310S, S31803,2507...
Diameter Range:
1/2"-48"
180°/RETURNLR/SR:
Implement Standard:
ASME/ANSI B16.9
GB/T12459-2017 GB/T13401-92
SH3408-96 SH3409-96
JIS B2311-B2313
HG/T21635 SY/T0510
DIN2605
Material Quality Of Product:
304,2205,2520,904L,316L,
304L,321,347,317L,310S,
S31803,2507
Diameter Range
1/2"-48"
ELBOW 90°SR
Implement Standard:
ASME/ANSI B16.9
GB/T12459-2017 GB/T13401-92
SH3408-96 SH3409-96
JIS B2311-B2313
HG/T21635 SY/T0510
DIN2605
Material Quality Of Product:
304,2205,2520,904L,316L,
304L,321,347,317L,310S,
S31803,2507...
Diameter Range:
1/2"-48*
Stainless Steel Flnage:
Implement Standard:
HG/T20592-20626
JB/T74-94-JB/T86.2-94
GB/T9112-9124
ASME/ANSL B16.5 / B16.47
DIN 2501-2638 BS4504
JIS 2220 EN1092
Material Quality Of Product:
304,2205,2520,904L,316L, 304L,321,347,317L,310S,
S31803,2507
Diameter Range:
1/2"-48" Stainless Steel CON. Reducer:
Implement Standard:
ASME/ANSI B16.9
GB/T12459-2017 GB/T13401-92
SH3408-96 SH3409-96
JIS B2311-B2313
HG/T21635 SY/T0510

Material Quality Of Product:
304,2205,2520,904L,316L,
304L,321,347,317L,310S,
S31803,2507
Diameter Range:
1/2"-48*
Stainless Steel Equal Tee:
Implement Standard:
ASME/ANSI B16.9
GB/T12459-2017 GB/T13401-92
SH3408-96 SH3409-96
JIS B2311-B2313
HG/T21635 SY/T0510
DIN2605-2617
Material Quality Of Product:
304,2205,2520,904L,316L, 304L,321,347,317L,310S, S31803,2507
Diameter Range:
1/2"-48
