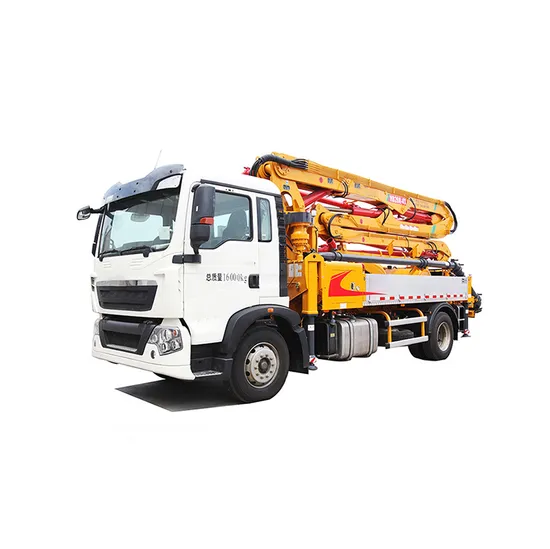

New 52m Concrete Pump China Brand Truck Mounted Pump Manufacturers
Basic Info.
Model NO.
52X-6RZ
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1540mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000
Condition
New
Color
White
Max. Theor. Concrete Output Pressure
9MPa
Rated Working Press
35MPa
Hopper Capacity
600L
Transport Package
Nude Packing by Roro Shipment
Specification
47000kg
Trademark
NEWINDU
Origin
China
HS Code
8413400000
Production Capacity
100sets/Month
Product Description
New 52M Concrete Pump China brand truck mounted pump manufacturersSales Manager
Evelyn Chen
Product Description Features:
• Compact in design, 52m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
| Pump Unit | Max. Theor. output | m3/h | 180 |
| Max. Theor. concrete output Pressure | MPa | 9 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 27 | |
| Hopper capacity | L | 600 | |
| Filling height | mm | 1540 | |
| Hydraulic system type | closed loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | φ130×2100 | |
| Concrete cylinder dia.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | | Wind cooling | |
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Boom Section | Structure type | 52X-6RZ | |
| Placing depth | m | 52 | |
| Max. horizontal distance | m | 48 | |
| Max. placing depth | m | 37.6 | |
| Slewing angle | ±270° | ||
| Boom number | | 6 | |
| The length of boom section | mm | 10410/9120/8690/9680/6600/3500 | |
| Sections folding angle | 90°/180°/180°/240°/195°/210° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 10900 | |
| Outriggers span (front×rear×side) | mm | 9300×11975×10422 |
