Vertical Drilling Machine Z5032c/1 Z5040c/1 Z5045c/1

Vertical Drilling Machine Z5032c/1 Z5040c/1 Z5045c/1

US$1,000.00-3,000.00 1 unit (MOQ)

Basic Info.

Model NO.
Z5032C/1 Z5040C/1 Z5045C
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case
Trademark
SJMC
Origin
China
HS Code
8459409000
Production Capacity
100 Set / Month

Product Description

VERTICAL DRILLING MACHINE Z5032C/1 Z5040C/1 Z5045C/1
SPECIFICATION MODEL
ITEM Z5032C/1 Z5040C/1 Z5045C/1
Max.drilling capacity 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 M.T.4
Spindle travel 130mm 130mm 130mm
Step of speed 6 6 6
Range of spindle speed 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Step of spindle auto-feeding 6 6 6
Range of spindle auto-feeding amount 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r
Min.distance from spindle axis to column 290mm 290mm 290mm
Max.distance from spindle nose to worktable 725mm 725mm 725mm
Max.distance from spindle nose to stand table 1125mm 1125mm 1125mm
Max.travel of headstock 250mm 250mm 250mm
Swivel angle of headstock(horizontal) 360° 360° 360°
Max.travel of worktable bracket 600mm 600mm 600mm
Worktable size of avaliablity 380×300mm 380×300mm 380×300mm
Swivel angle of table horizontally 360° 360° 360°
Table leaned ±45° ±45° ±45°
Size of stand worktable of avaliability 417×416mm 417×416mm 417×416mm
Motor power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
speed of motor 1400 r.p.m 1400 r.p.m 1400 r.p.m
Cooling pump power 0.04KW 0.04KW 0.04KW
Net weight/Gross weight 437kg/487kg 442kg/492kg 442kg/492kg
Packing size 1850×750×1000mm 1850×750×1000mm 1850×750×1000mm
Loading amount 18pcs/20'container 18pcs/20'container 18pcs/20'container

FEATURES:
*Drilling, milling and tapping;
*Spindle speed step-changed cyclically, spindle auto-feeding and cyclic change of feeding speed;
*Head swivels 360° horizontally;
* Headstock and worktable up&down perpendicularly;
*Super highcolumn;
*Precision micro feed;
*Positive spindle lock;
*Distinct auto device for releasing tools,operating very easilly;
*Gear driven,lower noise.
STANDARD ACCS.:
*Wedge
*Tie rod
*Washer

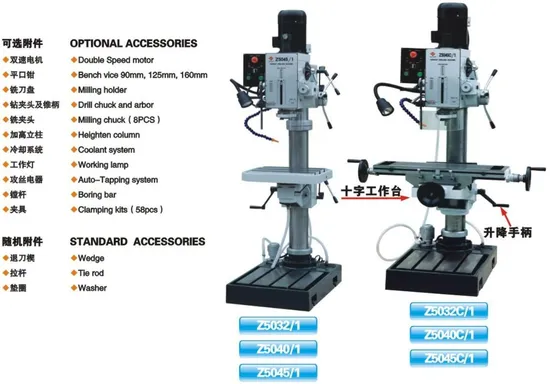

OPTIONAL ACCS.:
* Double speed motor;
*Bench vice 90mm,125mm,160mm;
*Milling holder
*Drill chuck and arbor;
*Milling chuck(8pcs)
*Heightened column'
*Coolant system;
*Working lamp;
*Auto-tapping system;
*Boring bar;
*Clamping kits(58pcs)
