Max 350mm Diameter Three Lathe Chuck Precision Cutting Machine Automatic CNC Control System Metal Pipe Tube Fiber Laser Cutting Machine

Product Description

Product Description

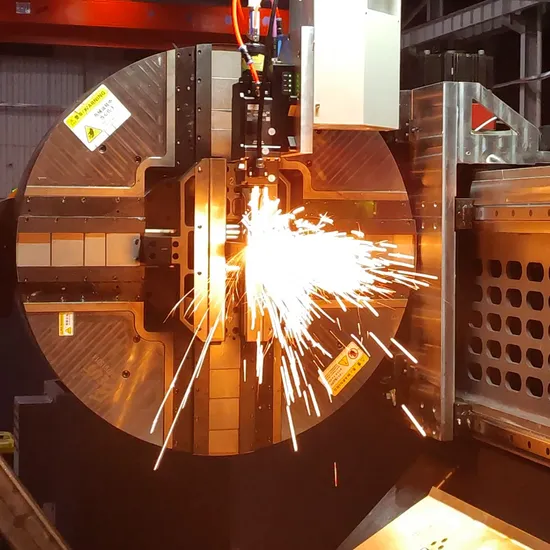

Fiber Laser Cutting Machine for Metal
Pipe cutting
Square/Rectangle tube laser cutting machine,Round tube laser cutting machine, Irregularly shaped tube cutter
Steel cutting
I-beam,H-beam, L shape angle steel, C/U shape steel,
The custom service is free.
Large size full screen CNC control system
1.Support for 18 common languages
2.Compatible with common design software
3.Support numeric input
with Remote controller
Remote control system can control the cutting progress at any time.
Pipe and Steel fiber laser cutting machine support customization, contact us to match you with the most suitable laser cutting machine.

Model No.	JA-6012G	JA-6017G	JA-6023G	JA-6035G	Customized
Machinable size	Diameter: <120mm Max length: 6000mm	Diameter: <170mm Max length: 6000mm	Diameter: <230mm Max length: 6000mm	Diameter: <350mm Max length: 6000mm	Diameter: Customized Max length: Customized
Laser Power	1500W/ 3000W/ 6000W
Function	Vertical cutting/ Angle cutting/ Laser slotting
Cutting Type	1.Tube/Pipe: Round tube, square tube, rectangular tube, ordinary shaped tube. 2.Steel: I-beam, H-beam, C shape steel, U shape steel, angle(L shape) steel, and ordinary steel.
Cutting Material	Iron /Steel /Stainless steel /Alnuminium alloy /Copper /Mg-alloy /Cr-Mo steel
Cutting Precision	<0.02mm
Control System	1.Desktop control system with 18 Languages 2.Enter the values/ Import the drawing 3.Remote control
Compatible Software:	AutoCAD /CorelDraw /Adobe Illustrator
Supported file format:	.DXF /.DWG/ .PLT /.AI /.GERBER and more

Cut Samples Display
Company Profile
Jingchuang(Tianjin) Laser Technology Co., Ltd
We were founded in 2015, covering an area of more than 50,000 square meters, with two factories and four production workshops, mainly manufacturing: fiber laser cutting machines for pipes, laser cutting machines for plates, laser welding machines, laser marking machines, CNC bending machines, grooving machines, and other matching machinery and equipment.
We support OEM/ODM, support custom production machinery according to your industry, budget, needs, etc., to provide you with the most cost-effective laser equipment, and continue to provide you with technical support, training and after-sales service, so that you can use our products more perfectly.
Certifications
As a manufacturing plant with a number of technical patents on laser cutting machines and CNC bending machines, our equipment has passed the European 2006/42/EC standard, meets the quality standards EN60204 and ISO12100, and is a demonstration enterprise. Therefore, we deserve your trust and cooperation.
Exhibition
We have participated in a variety of laser mechanical equipment related exhibitions, so that more friends can understand our equipment on the ground. You can contact us and we will share with you the latest exhibition information, so that you can check our lase machine in the field.
