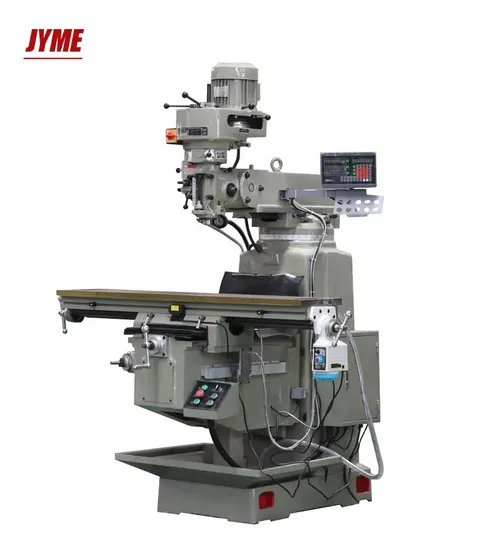

Turret Milling Machine Price List 4h Vertical Milling Machine
| US$2,700.00-3,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4H
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1270*254mm
Table Longitudinal Travel
780-850/880-980mm
Table Cross Travel
380-420/380-420mm
Spindle Taper
R8 Nt30 Nt40
Spindle Travel(mm)
127mm
Spindle Speed
16
Machine Size
1800X 1780X 2350mm
Machine Weight
1200kg
Transport Package
Wood CTN
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
1. Robust construction and heavy duty design.2. The machine body is made of Meehanite cast iron3. The milling head is made of SCM-21.Imported from Taiwan.4. The milling head can swing 90° right and left side,45° front and back side.5. The ram can swing 180° horizontally.6. The working table and guide rail are heating treated and precision grinding.7. DRO and dividing head are for option.8.Table automatic feed on X,Y,Z direction by gear driven.
Parameters:
| Machine model | 4H | ||
| Table size | 1270*254 | 1370*254 | |
| travel | Longitudinal travel(mm) | 780-850 | 880-980 |
| Cross travel(mm) | 380-420 | 380-420 | |
| Vertical travel(mm) | 350-380 | 350-380 | |
Spindle | Spindle taper | R8 NT30 NT40 | |
| Spindle travel(mm) | 127 | ||
| Spindle speed | 16 | ||
| Spindle feed(mm) | 0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008 | ||
| Low speed(r/min) | 66,110,175,270,550,930,1460,2270 | ||
| high speed(r/min) | 132,220,540,1100,1860,2920,4540 | ||
| T-slot | mm) | 3X16x65 | |
| | Main motor | 3HP / 2.2KW 5HP / 3.7KW | |
| Lifting motor | 1.1Kw | ||
| Working weight (Kg) | 350 | ||
| Machine Dimensions (mm) | 1800X 1780X 2350 | ||
| Net weight (kg) | 1200 | ||
