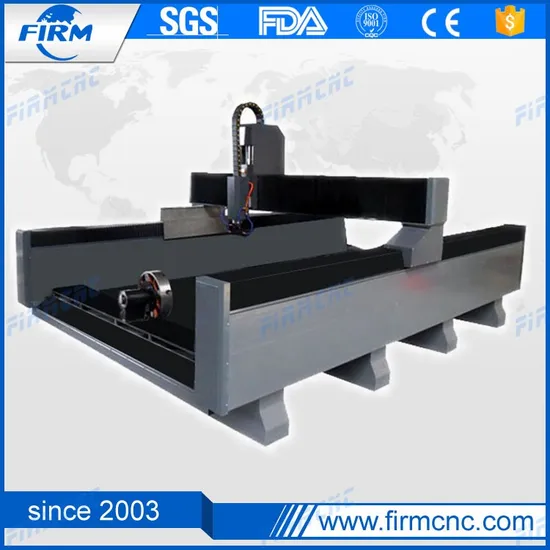

High Speed 3D CNC Stone Marble Carving CNC Engraving Machine

Product Description

High Speed 3D CNC Stone Marble Carving CNC Engraving Machine
Features
1) Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2) Powerful stepper motor driver, imported linear guide rails, running smoothly, high accuracy, long time service.
3) High precision pinion and rack transmission, , could engrave 1mm letter clearly.
4) Water cooling spindle (24000rpm), apply to long time processing of wood products.
5) Water cooling knife, when carve metal and stone use.
6) Portal frame: Use aviation industry aluminum, long service time. Some factory choose aluminum tube, the cost Is lower, but service time is short.
7) After choose heavy weight, portal frame: Squat sitting structure, when carve metal and stone more steady.
8) Aluminum table +PVC+ sink.
9) 4.5kw water cooling spindle.
10) The advanced professional control system compatible with many instruction format, may achieve process Function in interruption of power supply,
breakpoint and next day which is more convenient and save labor.
Parameter

Description	Parameter
Table Size	1300* 2500mm
Table Surface	T-slot Table
Frame	Thicker Welded Steel tube Structure
Spindle Power	4.5KW water cooling spindle
Spindle Speed	0-24000RPM
Motors	450B stepper motors ( 4 sets in total )
Driver	YAKO driver
Transmission	X,Y Axis: Helical Rack and Pinion Drive Z Axis: Taiwan TBI ball Screw
Machine Guide Rails	Taiwan Hiwin Linear square guide rail
Inverter	Fuling Inverter
Operating System	DSP control system
Soft Limit switch	Japan Omron limit
AC contactor	France Schneider
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Max. Power Consumption	3KW(Without Spindle)
Working Voltage	AC380V/50Hz, 3Phs (Option: 220V)
Command Language	G Code
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
Software Compatibility	Artcam OR Type3 Software
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Packing Size	1800mm*2500mm*1700mm
N.W.	1100KG
G.W.	1200KG
Optional Parts	Spindle: Air cooling spindle
	Motor and Driver: Servo system Japan: Yaskawa / Panasonic servo China: Taiwan Delta servo
	Control system: NC Studio/Syntec/mach3

Applications
Industry: Mainly used for granite, marble slabs, white marble and other stone carving patterns, such as text pattern. And surely can used for wood mateials carving.
Applicable materials: Stone and non-metallic materials
Service
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours.
Packing & shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
FAQ:
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or msn, skype etc.
