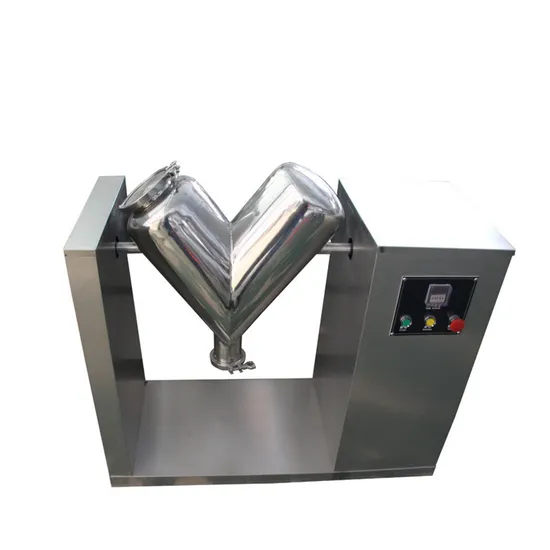

High Quality Stainless Steel Industrial Powder Mixer V Shape Dry Powder Mixing Machine Blender Mixing Equipment

Product Description

V Type Powder Mixing Machines Lab Dry Powder Mixer Chemical Mixing Equipment Product Description This v-mixer is suitable for mixing powdery or granular materials. Through mechanical transmission, the materials in these cylinders move back and forth and turn over repeatedly, so as to achieve the purpose of uniform mixing. V-100 V Type Vertical Powder Mixer Machine
Mixer V100 is a mixing machine It is suitable for mixing various dry powder and granular materials in chemical and food industries. The mixer has characteristics of simple structure, easy operation and pretty appearance. Its parts in contact with materials are made of stainless steel, which conforms to the CGMP.
Working Principle --- There is a motor and a speed reducer installed at the right side.
--- The motor drives the speed reducer through a belt. Then, the reducer drives the V-shaped mixing cylinder to work via coupling.
--- As a result, the powder in the V-shaped mixing cylinder is mixed back and forth in all directions in the cylinder.
Main Uses Of Mixer This machine is mainly used for the uniform mixing of powder,granular and other materials in various industries. Technique Parameter:

V-shape mixer is mainly used for powder-powder mixing, especially for materials in small batch and has high uniformity
requirement. The cylinder is rotatable. The mixing process is divided into stop & feeding, start & mixing, stop &
discharging,etc.Vacuum feeding device can be equipped.
This machine is suitable for different industries, used for mixing the dry granule materials. This machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted. The inside and outside of machine are polished. Mixing the materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users' demand. It is suitable for smaller powder, blocks and the material that contain a certain mixtureof water. In addition, the machine is also equipped with a timing device; you can control the material mixing time.

V Type Dry Powder Mixing Machine
Model	V-50(TO BUY)	V-100(TO BUY)	V-200(TO BUY)	V-300(TO BUY)
Volume	50L	100L	200L	300L
Max. Filling Capacity	20L	40L	80L	120L
Best Filling Capacity	14L	28L	56L	84L
Power	0.75KW	1.1KW	1.5KW	1.5KW
Rotational Speed	20r/min	15r/min	15r/min	15r/min
Dia. Of barrel	Φ300mm	Φ350mm	Φ450mm	Φ500mm
Dia. Of Inlet	Φ160mm	Φ250mm	Φ300mm	Φ300mm
Dia. Of Outlet	Φ80mm	Φ80mm	Φ100mm	Φ100mm
Dimensions(mm)	1350x450x1160	1900x800x1190	2010x850x1440	2220x900x1470
Weight(kg)	183kg	236kg	300kg	400kg

Advantages V-type mixer has the advantages of good mixing effect, high efficiency, low power consumption, simple operation, etc. Widely used in dry powder granular mixing .

1. V-type mixer is simple to operate and the mixing effect is uniform, feeding can be manual or equipped with vacuum suction device, discharge using butterfly valve device, using asymmetrical cylinder body, cylinder body are made of SUS304 material, smooth inside, easy to clean.
2. V-type mixer column frame is made of steel structure, worm gear reducer and gear rotation deceleration are made of carbon structure, to meet the design requirements of the machine operation.
The distribution box is equipped with timing device, which can be opened regularly according to the requirements of materials.
3. V-type mixer is composed of two asymmetrical cylinders, the material can do vertical and horizontal flow, mixing uniformity reaches more than 99%. Beautiful appearance, uniform mixing, widely used.
