Easy Install Stone Crushing Machine Limestone Granite Construction Waste Fine Jaw Crusher

Product Description

Product Description

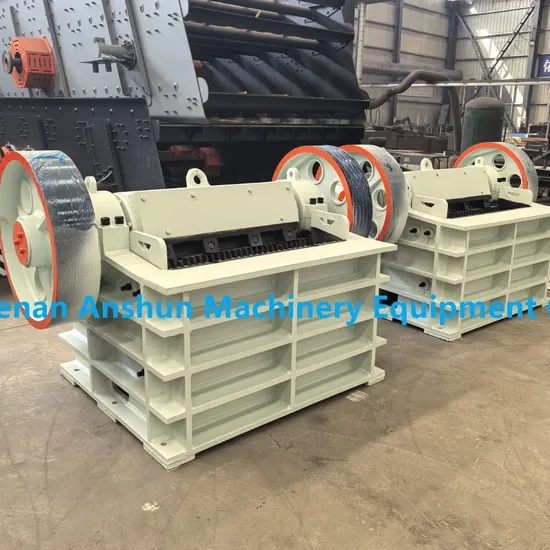

PEX jaw crusher is the most commonly used coarse crushing equipment among the two major series of jaw crushers. This equipment adopts mature crushing technology, and its performance and structure adopt a systematic and comprehensive optimized design. It has high strength, reliability, durability, and crushing force. It has the characteristics of large size and high production output. It is often used as a primary crusher in various stone and ore-crushing production lines.
This jaw crusher has a large crushing ratio, high output and uniform particle size. It has a simple structure, easy maintenance, low production cost, and other characteristics.

Working Principle
The motor drives the belt and pulley, making the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thus pushing the movable jaw plate closer to the fixed jaw plate, and at the same time, the material is squeezed. To achieve the purpose of crushing, when the movable jaw moves downward, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed material is discharged from the lower opening of the crushing cavity. As the motor rotates, the crusher's movable jaw makes periodic movements to crush and discharge materials, realizing mass production.

Model	Size of Feed Opening(mm)	Max.feed Size(mm)	Discharge Opening Adjustment Range(mm)	Processing Capacity(t/h)	Power(kw)	Overall Dimension L x W x H(mm)
PE400×600	400×600	350	40-90	15-60	30	1650×1588×1050
PE500×750	500×750	425	50-100	40-110	55	1956×1918×1920
PE600×900	600×900	500	60-125	90-180	75	2250×2733×2280
PE800×900	800×900	600	80-140	100-220	90	2450×2950×2490
PE750×1060	750×1060	630	60-150	110-380	110	2531×2455×2783
PE900×1060	900×1060	700	100-160	180-380	110	2900×2657×2950
PE900×1200	900×1200	750	110-165	220-450	110-132	3100×2760×3260
PE1000×1200	1000×1200	850	195-265	315-500	132-160	3480×2876×3330
PE1200×1500	1200×1500	1020	150-300	400-800	160-220	4200×3300×3500
PEX250×750	250×750	210	15-50	15-30	22-30	1400×1751×1515
PEX350×750	350×750	300	15-50	18-40	30	1485×1680×1648
PEX250×1000	250×1000	210	15-60	15-60	30	1550×1964×1380
PEX250×1200	250×1200	210	25-60	20-60	37-45	1530×1946×1380
PEX300×1300	300×1300	250	20-90	35-70	55-75	2000×2320×1730
PEX500×1500	500×1500	400	40-110	45-150	75	2850×2640×2100

Product Advantages
Stable And Reliable Performance
It is made of high-quality steel castings. At the same time, compared with other crushers of the same specifications, we use larger and more durable eccentric shaft bearings to give it a higher load-bearing capacity and make the equipment operation more stable and reliable.
The Finished Product Has a Good Grain Shape
The PE jaw crusher adopts the driving extrusion crushing principle, which significantly reduces the proportion of cubes in the product, reduces the content of needle-shaped products, and makes the particle size more uniform.
Long Lasting
It is made of high-hardness, wear-resistant materials, which greatly enhances its pressure and wear resistance and extends the machine's service life.
Simple Structure and Easy To Operate
After continuous optimization, the machine structure is also continuously upgraded and optimized. The structure is simple and easy to operate, maintenance is more convenient, and downtime for maintenance is greatly shortened.
Good Dustproof Effect
It is equipped with a dust bag device. When dust enters the filter bag, the dust bag expands rapidly in an instant and shakes off the dust with the reverse action of the airflow.
Applicable Materials
The jaw crusher can process over 120 kinds of rocks to medium particle size, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate, etc. Different final output sizes could meet your different needs.
Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
