Automatic Piston Pump Filling Machine for Tomato Sauce Salad Sauce Peanut Sauce Black Pepper Sauce Mayonnaise Chili Sauce Seafood Sauce Filling Machine
| US$11,000.00-14,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
GP series
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Paste
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Plunger
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Bottle
Packaging Material
Plastic
MOQ
1 Set
OEM
Yes
Capacity
1200-3200bph Depends on How Many Nozzles
Weight
800 Kg
Buffer Tank
with Level Controls
Driven Type
Electric
Quantitative Error
0.5%
Source Voltage
Three-Phase Four-Wire System AC220V 380V
Transport Package
Plywood Case
Specification
1800*1150*2100mm
Trademark
Grepack
Origin
China
HS Code
8422301090
Production Capacity
20 Set Per Month
Product Description

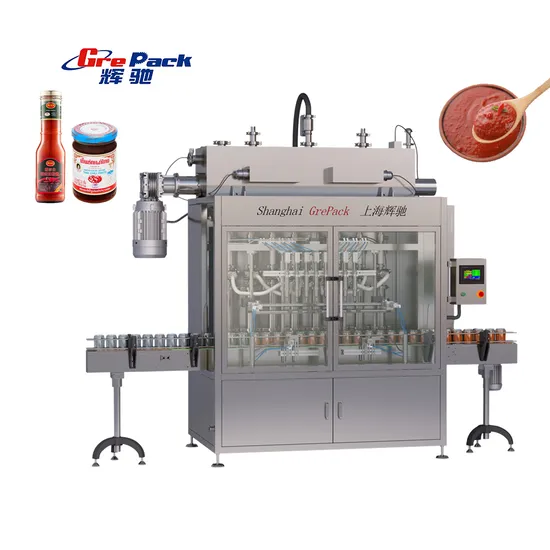

Automatic Sauce & Jam & Paste Filling Machine.This filling machine is controlled by a servo piston and can be connected to a filling line (capping machine, labeling machine, and even intelligent packing system), and mainly suitable for various materials, such as daily products, sauce, jam, paste, cream, and so on.
Features
1)Different volumes can be set on HMI directly; 2)Fast adjustment for different size bottles within 10-20min; 3)Piston driven by servo motor, high accuracy within +/-0.5% and high stability; 4)Hyginenic tri-clamps connection, easy to remove and clean, comply with Food grade standards; 5) The servo piston and nozzle are designed for normal sauce or thick jam for related products without dripping
| Model | GP-4 | GP-6 | GP-8 | GP-10 | GP-12 |
| Filling Range | 30-125ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml | ||||
| Filling Nozzle | 4 | 6 | 8 | 10 | 12 |
| Filling Capacity (Based on 1L) | ≤ 1200 bottles/hour | ≤ 1800 bottles/hour | ≤2400 bottles/hour | ≤3000 bottles/hour | ≤3600 bottles/hour |
| FillingAccuracy | ≤±0.5% | ||||
| Voltage | AC220V/380V 50-60HZ (Special customizable) | ||||
| Power | 2.0-3.5KW | 2.0-4.0KW | 2.5-4.5KW | 3.0-5.5KW | 3.0-6.5KW |
| Air Pressure | 0.5-0.8Mpa | ||||
