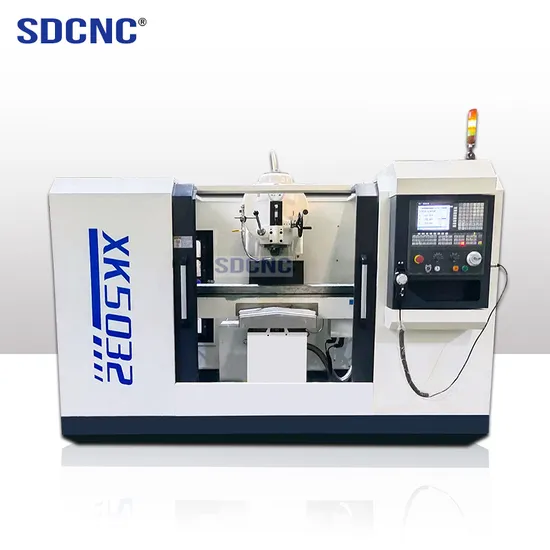

Gear Change Automatic Feed Xk5040 Vertical Lifting Table CNC Milling Machine 5032 Fully Protected CNC Milling Machine

Product Description

Detailed Photos
The main performance characteristics:
1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.
2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body,
3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,
4. The high speed, high precision and high rigidity spindle unit,
5. The intermittent automatic lubrication.
Application:
1. The product for the X, y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.
2. Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,
3. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.
4. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.
5. Can be petty four axis of rotation, in order to meet the special requirements of machining parts Product Parameters

Specifications	Units	XK5032	XK5040
Table size	mm	1320x320	1700x400
Table travel (X.Y.Z)	mm	900x290x350	920x450x350
T-type slot (numbers / width /space)	mm	3-18-80	3-18-90
Max. load working table	kg	320	500
Distance from spindle nose to table	mm	40-390	50-500
Distance from column axis to column guide way	mm	350	450
Rapid feed speed(X.Y.Z)	mm/min	6000/6000/3000	6000/6000/3000
Feed speed X.Y(.Z)	mm/min	6-3200(3-1600)	6-3200(3-1600)
Spindle travel	mm	70	85
Spindle taper		ISO50(7:24)	ISO50(7:24)
Max. 5revolving angle of vertical milling head	°	±45°	±45°
Spindle speed range	rpm	30-1500(18 steps)	30-1500(18 steps)
Spindle motor power	KW	7.5	11
Longitudinal, transverse feed motor torque(X.Y)	N. m	12	12
Vertical feed motor torque (Z)	N. m	22	22
Max. spindle torque	N. m	1000	1000
Overall dimensions(Lx W x H)	mm	2300x1900x2300	2400x2200x2400
Machine weight	Kg	3000	3850
