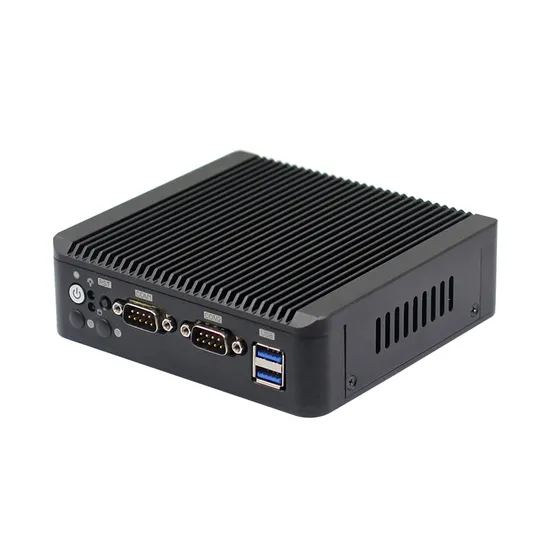

Mini Industrial PC J5005 2LAN I225 DDR4 2COM Computer Mini 2USB VGA HD Display DC 12V Fanless Computer PC
Basic Info.
Model NO.
N-BOX-TA
CPU Type
Quad Core
Hard Disk Rack Type
Partition
Screen Size
Customization
System Expansion Slot
7 Slot
Touch Screen
Without Touch Screen
Type
IPC
Installation
Horizontal
Rack Unit
1U
Power Supply Type
DC12V
Transport Package
Piesia Standard Package
Specification
134*126*46.8mm
Trademark
Piesia
Origin
China
Production Capacity
1000PCS/Month
Product Description
Product DescriptionProcessor system | CPU | Integrated Intel Gemini Lake single CPU |
| CPU package | BGA | |
| Chipset | Intel Gemini Lake serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Single channel DDR4 2133Mhz |
| Memory | MAX Support DDR4 8G | |
| Socket | DDR4 SODIMM 60 Socket | |
Video | Graphic controller | Intel UHD 600 Graphics |
| HDMI | HDMI(2.0)MAX resolution 4K@60Hz | |
| VGA | VGA MAX resolution 1920x1200 | |
| I/O rear panel | ports | 1*HDMI 2*USB3.0 4*USB2.0 2*LAN 6*COM(COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings,RS485 supports automatic flow control,COM3,COM4,COM5,COM6 are RS232) 1*Quick boot button with indicator light 1*Reset button 1*DC 1*Power indicator light 1*Hard disk indicator light |
| Network | Controller | 2*Intel I211AT or Intel I210High-performance gigabit network card(Optional) |
Input/output interface | USB | 4*USB2.0 2*USB3.0 Max support +5V/1A |
| Com port | COM1,2 can be selected as RS232 or RS485 by jumper and BIOS settings,RS485 supports automatic flow control,COM3,COM4,COM5,COM6 are RS232 | |
| Expansion bus | Mini-PCle | 1 Mini-PCIe socket,support PCIe and USB device(5G module or 4G module optional) |
| Storge | SATA | 1 standard SATAIII interface with a maximum transfer rate of 6Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate of 6gb/s | |
| EMMC | Support 32/64/128G(optional) | |
| Power supply | Power Type | Single input dc power supply,DC12-19V |
| Working environment | Operating temperature | -20ºC ~ +60ºC |
| Storage temperature | -40ºC ~ +85ºC | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| System Support | Windows10 Linux | |
| Physical dimension | Size | 134*126*46.8 mm |
| Weight | 0.5KG | |
| Certification | CE,ROHS,FCC |
