Industrial Complete 100tpd Wheat Flour Mill Machine

Product Description

Industrial Complete 100TPD Wheat Flour Mill Machine
1. Wheat flour mill machine description

Wheat flour mill machine capacity	100 tons per 24 hours
Total length of the roller	12000mm
Flour extraction:	To produce standard flour:75-82% To produce grade 2flour: 72-75% To produce grade 1flour: 65-70%
Power supply	381 KW
Dimension of the factory:	42000×12000×12000mm(Tripod structure)
Container:	40'×6
Installing time:	three months

Industrial line wheat flour mill machine in Africa

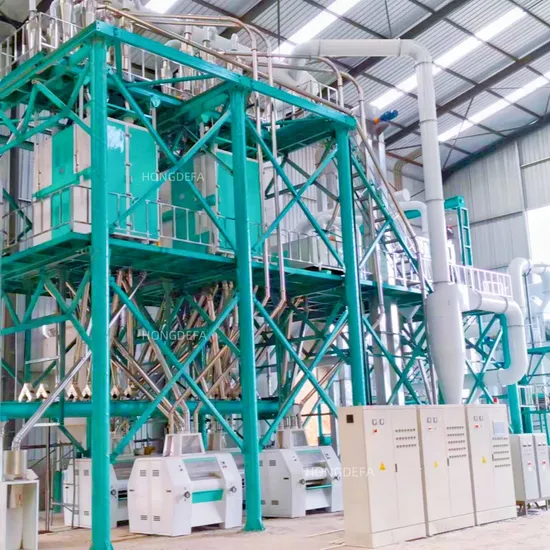

Complete plant of 100t/24h wheat flour mill machine
Real manufacturer supply complete wheat flour mill machine
Advanced technology 100T/24H wheat flour mill machine
Product specifications
Flow sheet of 100T wheat flour mill machine
It's complete plant from cleaning to milling to packing.
Cleaning part is to clean out the middle and small impurities from raw grain such as dust,sand,stone, magnetic material, poorly diseased wheat kernels and so on. It includes hitting, sieving, stones removal, magnetic materials separating and dampening. It is good for the next part.
After finishing cleaning, wheat falling into milling machine. At first, extract much of scratch, particles and dunst with good quality from wheat, graded them according to particles's size and quality then flowing into purifier. At the same time, the scratch system separate hull and endosperm. That can get pure particles and dunst, then make into top grade flour by reduction system. For the sencond grade particles and endosperm will mill by the relevant reduction system to get bran flour. The milling flow can divided into different system, that is Break system, Scratch system,Purifier system, Reduction system, Air transportation system, and packing system
The packing system function is weigh, sewing.
This set 100t wheat flour mill machine technique flow just for your reference. Different machine configurations the machine design is also different.
We have professional technique department will make the wheat flour mill machine design based on client needs and local market.
The advantages of 100t/24h wheat flour mill machine:
1. Use European standard pnuematic roller mill,automatic feeding
2. Using stainless steel pipes of milling cyclones,have three times lifetime than galvanized steel. Very long time lifetime.
3. High quality plansifter,which can produce different final productions based on client needs and local market.
4. Impulse dust filter,which can keep your workshop building cleaning.
2. Final production of wheat flour mill machine
We have professional technique team will make the machine design based on client reuqest and local market.
The wheat flour mill machine can produce different size wheat flour,semolina and bran.
To do like bread,biscuit,cake and so on
Detailed Photos
4. Main single machine of wheat flour mill machine
1) High-speed vibratory sieve: Vibrating sieve is a sifting machine with high speed.
The principle is when the sieve body are droved by two sides vibrating motors, wheat flow into the first sieve surface through feeding entrance, large impurity on the upper sieve is discharged to the hopper.
Another material come into the second sieve surface for continual sift. On this surface, the wheat and small impurity are separated each other. Finally lighter impurity is discharged by the suction pipes. This machine has much speciality such as high capacity, without jaming and so on. The function is the sieve remove all impurities from wheat to reduce dust and impurity to pollute workshop as much as it can. And ensure rear working line with good running. Meanwhile to avoid jaming into the slip of screw conveyor and exit of damper bin. Behind the horizontal scourer has another vibrating sieve, to remove mud, broken wheat, small impurity, wheat hair from the scourer
2) Horizontal scourer:
Although wheat already has cleaned into the vibrating sieve, most impurities were removed, but this is the first cleaning procedure, so still has many impurities in the wheat, such as dust dust, wheat hairs, insect eggs, etc. If the wheat not clean very well , will givue the flour a poor quality, bad colour, and high ash rate, etc. The working principle of the beating brusher is using the high speed rotating metal plate to beat the wheat inside the beating brusher. Between beating plate and iron sieve the wheat attrition and beaten several times, and the wheat granules to rub each other, that separate the impurities on the wheat husk from the wheat. On the same time, mud, cinder, and worm eaten wheat which the size is smaller than wheat is crashed, moved by the sieves and blowers
3) Gravity classifier destoner:

According to different gravity between wheat and same size stones, and air dynamics, adopt destone and sieve performance and movement parameter, and air current speed, the destoner to classificate the raw material. The wheat and stones moving on the sieve with different direction, made the stones are separated from wheat.
4) Auto feeding system roller mill,easy to operate,longer service life.The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls.This makes residue-free.
5) Plansifter
6) Pipes
For the wheat flour mill machine pipes of milling section,we use stainless steel material,have three times lifetime than galvanized steel.
7) Control system
PLC touch screen control system,
Control all the system by the touch screen,one key start
Successful projects
5. Successful projects
We have installed many different capacity wheat flour mill machine in different countries,like
100T wheat flour mill machine in Ethiopia,
120T wheat flour mill machine in Zimbabwe,
300T wheat flour mill machine in Afghanistan and so on

Capacity	Country
5t,10t,20t,30t flour mill wheat milling plant	Kenya,Zambia,DR Congo,Angola,Mozambique,Zimbabwe,Ethiopia,
50t flour mill wheat milling plant	Kenya,Zambia,Zimbabwe,DR Congo,Mozambique,Cameroon
100t,150t wheat flour mill machine	Kenya,Zambia,Ethiopia,Zimbabwe,Egypt,Argentina
300t wheat milling machine	Zambia,Zimbabwe,Egypt

30T/24H wheat flour mill machine in Angola
Double layer steel structure design,high configurations
This is our 36t/24h wheat flour mill machine running in Angola. Two layers steel structure design,complete plant from cleaning to milling to sifting to packing.
Stainless steel pipes,
Stainless steel cyclones,
Touch screen control system,
Advanced technology
80T/24H wheat flour mill machine in Ethiopia
European standard pneumatic roller mill,
Stainless steel pipes of milling section.
This is our 80t/24h wheat flour mill machine running in Ethiopia. It's running very well.
European standard pneumatic roller mill,
High quality plansifter,
Stainless steel pipes,
Stainless steel cyclones
120T wheat flour mill machine in Zimbabwe
High quality plansifter,
PLC touch screen control system
200T wheat flour mill machine
Steel structure design,high quality complete plant
300T/24H wheat flour mill machine in Malaysia
Floor structure design
Six floor complete plant
Sales and service network
6. Sales and service network
We are the professional manufacturer of wheat flour mill machine. We have professional pre-sale service department and aftersales service department.
For the wheat flour mill machine,we have installed many wheat flour mill machine in different countries.
Like Ethiopia,Zambia,Uganda,Kenya,Zimbabwe,Angola,Tanzania,Nigeria and so on.
We have two oversea service center in Africa,and have 8 local agent in Africa.
2 Branch office: Zambia,Ethiopia
8 Local agent: Senegal,Nigeria,Ghana,DR Congo,South Africa,Zimbabwe,Kenya,Egypt
FAQ
7. FAQ
Q1. Could we visit your factory to check the machine carefully? A1. Of course,we warmly welcome your coming to our factory to discuss of the detail. Q2: How long is your machine's guarantee time? A2: Normally our guarantee time is one year except for the easy broken parts. Q3: Could you sendd technician team to help ours installation and commissioning? A3: We can send technician team to your country to help installation,we have professional teams with rich experience to do this job. Q4: If we have very special requests for the production line,could you help me to work on it? A4: Yes,we can afford customerized service, we have one technical team to focus on this job,so they can afford the best service to you.
About Us
8. About Us
Our company is a professional manufacture of maize mill machine and wheat flour mill machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.
The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located in Wumashan industrial area, Zanhuang County, Shijiazhuang City, 4hours driving From Beijing. Hongdefa has approximately 120 workers, a manufacturing factory 50000 square meters, and 5000 square meters of production workshop, 6000 square meters warehouses,1000 square meters of office space.
Our Advantages
8. Why choose us
We are the professional manufacturer of wheat flour mill machine,we are the real factory.
And we have professional technique department,which will make the machine special design based on your request and local market.
