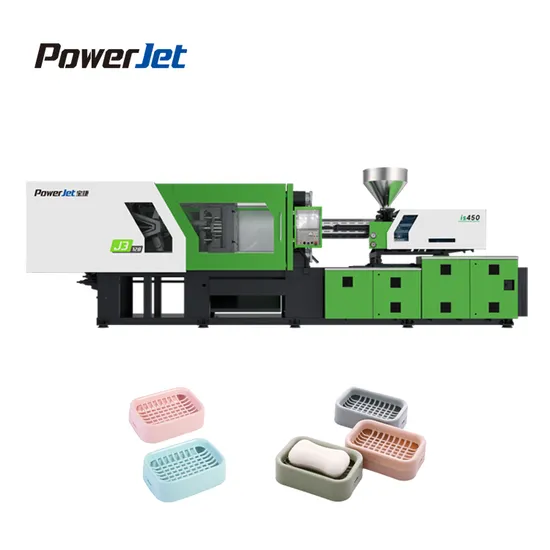

100 Ton Household Small Plastic Products Making Injection Molding Machine Factory

Product Description

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
Machine Details
Product Parameters

Description		UNIT	BJ128-V6/S6
CLAMPING UNIT	Clamping force	KN	1260
	Opening stroke	mm	350
	Max.datlight	mm	750
	Platen size	mm	610*610
	Space between bars	mm	410*410
	Max.mold height	mm	400
	Min.mold height	mm	145
	Ejector stroke	mm	100
	Ejector force	KN	42
INJECTION UNIT	Screw diameter	mm	36	40	45
	Screw L/D Ratio	L/D	23	20	18.2
	Injection Pressure	MPa	215	174	138
	Shot volume	cm³	193	238	302
	Shot weight (ps)	g	173	213	270
		oz	6.1	7.5	9.5
	Injection rate	g/s	84	103	131
	Screw stroke	mm	190
	Screw speed	rpm	190
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	11/14
	Heater power	KW	6
GENERAL	Dry-cycle time	s	1.5
	Oil tank capacity	L	210
	Machine weight	T	3.5
	Machine dimensions (L*W*H)	m	4.3x1.2x1.8

Company Profile
We have established a global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers
FAQ
Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
