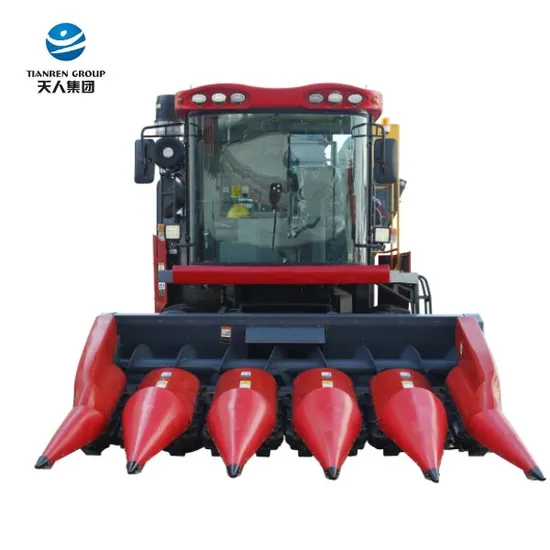

5 Rows Corn Harvester Machine for Maize Harveting

5 Rows Corn Harvester Machine for Maize Harveting

US$46,000.00
1-4 SET
US$45,500.00
5+ SET

Basic Info.

Model NO.
4YZ-5F4
Application
Corn
Power Source
Diesel
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Self-Propelled
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
12 Months
Power
220HP
Ear Tank Capicity
5m3
Unloading Height
2.9m
Harvesting Rows
5 Rows or Customize
Row Space
50-75cm Can Choice
Transport Package
Nude
Specification
9800*3200*3780mm
Trademark
Tianren
Origin
Shijiazhuang City Hebei Province China
HS Code
8433510001
Production Capacity
2000 Sets

Product Description

High quality 4 rows 5 rows and 6 rows corn harvester machine for maize harveting
The harvester can pick up corn ear, peeling and crush the corn plant in one operation,Hydrostatic drive, one-lever control, new frame design

The whole system harvester is equipped with standard hydraulic blowback fan, and Standard engine rear suction hydraulic pump directly connected, which is more efficient and reliable than the belt drive. The engine shield is optimized and improved, and the engine is cleaner when working

The whole system harvester is upgraded to six groups of husker with 24roller, and the whole system is equipped with a mechanical bar divider, which makes the husker work load smaller and more uniform;
The peeling roller is improved and optimized, and the end of the peeling roller is added to prevent blocking, and the corn stick is not blocked;
Add support under the anti-drop iron plate, do not wear the rubber roll;

Adopt new cab, standard heating and cooling air conditioning, standard positive pressure fan; High permeability working light, higher brightness; The space is larger and the vision is better, and the sound insulation sealing effect is upgraded overall.
corn header frame have been strengthened
Upper beam 60 square pipe increased to 80 square pipe;
Longitudinal beams were added;
The cylinder seat is strengthened;
The rectangular tube crossing the bridge is increased from 60*30 to 60*40;
2024 update reinforced saddle
Saddle widened from145 to 220, lengthened from365 to 405;Steel plate from 10 to 16;
Steering pendulum shaft from 40 to 50
Chassis added front and rear axle deformation limits;
Rear-wheel steering vertical shaft from 55 to 60

5 Rows corn harvester machine specification
Item Unit Data
Model / 4YZ-5F4 / 4YZ-6F2
Harvesting rows row 5 rows / 6 rows
Structural style / Self-propelled
Row space mm Customize according to request
Harvesting row space range mm 70cm or 75cm
Overall size mm 8960*3450*3780
Weight kg 9300
Engine power Kw 161.5
Number of cylinder / 6
Engine model / YUCHAI / YCA07220-T300
Engine rated rotation speed r/min 2200
Oil consumption L/ha ≤35
Working efficiency Ha/h 1-1.2
Volume of tank M3 5
Height of unloading m 2.9
Min. corn cob height from field mm 200
Drive wheel / 18.4-30
Guide wheel / 16.0/70-20
Wheel base mm 3286
Guide wheel track mm 1950
Driving wheel track mm 1920
Peeling machine / 6 groups flat rubber roller,24 rollers
Straw chopper model / 1JH-290
Structural style of chopper Flail knife
Stubble height mm ≤100
Corn seeds breakage rate % ≤ 1%
Ear loss rate % ≤ 2%
Harvester reliability % ≥ 90%
Air conditioner / Y

5 rows corn harvester machine for maize harveting facotry
Factory picture and produce lines
