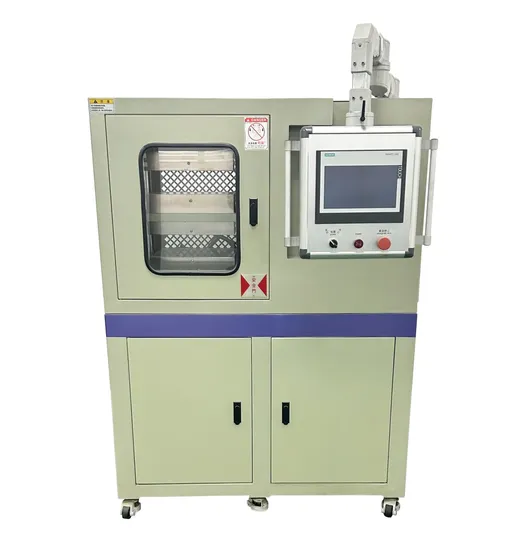

Small Laboratory Seal Vacuum Rubber Vulcanizing Press Machine 400 * 400mm Vulcanizer Curing Press 50t

Small Laboratory Seal Vacuum Rubber Vulcanizing Press Machine 400 * 400mm Vulcanizer Curing Press 50t

US$6,800.00-10,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
CF-400B
Certification
CE, ISO, SGS
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Power
3.7 Kw
Weight
800 Kg
Maximum Pressure
50 T
Control System
PLC
Heating Plate Area
400*400 mm
Cooling Plate Area
400*400 mm
Type of Cooling
Water Cooling
Temperature
Room Temperature -300 Degrees
Timer
0 - 99min - 9.9hr
Video Factory Inspection
Provided
Mechanical Test Report
Provided
Transport Package
Standard Packing
Specification
1000*550*1600 mm
Trademark
CFine
Origin
China

Packaging & Delivery

Package Size
110.00cm * 65.00cm * 170.00cm
Package Gross Weight
1000.000kg

Product Description


Product brief introduction
Applied range:
* Mainly used in rubber and its products, plastic and its products polyolefin, PVC, film, coil, profile production and polymer blending, pigment, color masterbatch, stabilizer and other industries, its main use is to test raw materials after molding, its physical properties change, contrast. Such as: the dispersion of color, light transmission, the gloss of the surface of the material, whether there are black spots, its strength, plasticity, hardness and so on after auxiliary materials.
* It is suitable for factory acceptance of the physical properties of suppliers' raw materials, comparison of similar products, and development of new products by research and development departments of colleges and universities. It can be used as a reference before mass production.
Typical application:
* Raw materials gel (fisheye), black spot, stain detection
* Raw material tablet, sample preparation
* Physical property test
* Material research and development
Working principle:
* The raw material is put into the mold, the rubber material is shaped at the rated pressure and temperature, and the product reaches the melting point through a certain time, so as to obtain the product with certain physical properties.
NO.
1 Model Tetrastyle
2 Maximum pressure 50 T
3 Mold opening mode Automatic ascent and descent
4 Temperature Room temperature ~300 degrees
5 Pressure The pressure size can be arbitrarily adjusted within the range according to the experimental requirements, easy to use and easy to operate
6 Temperature control mode Temperature control PLC control, with high precision sensor, with automatic temperature compensation function to ensure temperature balance
7 Control mode PLC control, touch screen operation, manual mold opening, manual mold closing, manual steam exhaust, automatic constant temperature, manual time control, automatic pressure
8 Electrothermal sheet material Adopt high quality high carbon steel after grinding quenching and electroplating hard chromium
9 Working level Two layers, one for heating, one for cooling
10 Timer 0~99 min~9.9hr
11 Heating plate area 400×400mm
12 Type of heating Electrical heating
13 Cooling plate area 400×400mm
14 Type of cooling Water cooling
15 Safety protection The safety protection device has overtemperature protection
16 Power supply 3∮, AC380
17 Weight About 800 kg
18 Volume About 1000*550*1600 mm

After-sales service In-sale:
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the latest progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic, rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people. We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation. Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!
