Honeycomb Paperboard Machine

Product Description

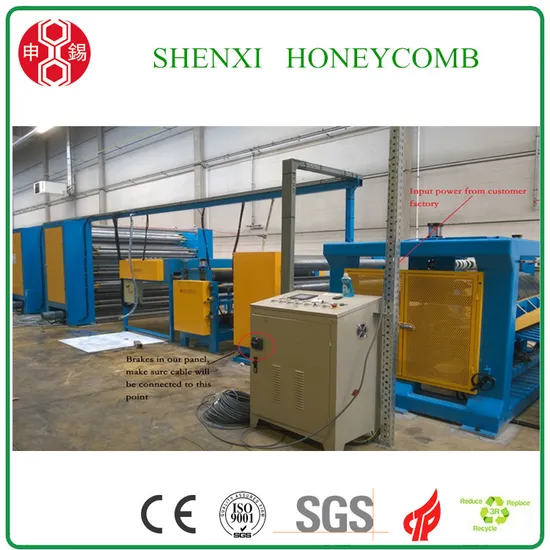

Product Description Production introduction Wuxi Shenxi Honeycomb Machinery Factory, supplies honeycomb paperboard lamination line. Honeycomb lamination line makes the honeycomb paperboard from 8 to 100mm thickness automatically. It can make 5000-8000 m2/ shift.
Features: 2.1 The paperboard cutting unit uses two servo motors & ball screw system to make it synchronized and cutting. Tolerance within 2mm/ m.
2.2 Belt press unit, worm screws adjust the height of upper press unit continuously and stable. The pressure can be adjusted by springs continuously.
2.3 Hot air circulation in the oven, increase the thermal efficiency.
2.4 Safety control system according to CE regulations.
2.5 Paper will avoid the gluing roller while machine stops, easy to do the adjustment when machine's on.
2.6 Apply glue on paper or honeycomb, both available.
2.7 Heating: steam, electricity, Hot oil all available.

3.Process of honeycomb making
Paper unwind---honeycomb expand---glue applying---- Laminate and belt press---hot board heat----Belt press again---Board oven--- cold press----trim (optional)--- cross cut.

4.Technical data

No.	Item	HF(B)-1300	HF(B)-1450	HF(B)-1600
1	Thickness of honeycomb paperboard	8-100mm
2	Maximum width of paperboard (mm)	1300	1450	1600
3	Cardboard cutting precision	+-2mm
4	Length of honeycomb paperboard(after cutting)	>=500mm
5	Applicable paper	180-420gms cardboard paper or Kraft paper
6	Layer of face paper	1
6	Maximum designing speed	20m/min
7	The actual production speed	6-12m/min.(According to the paper dry degree,Glue quality,paper core thickness,Local humidity and other factors to change )
8	Heating drying method	electrical heating
9	Total motor power	30KW
10	Electric heating power	80KW
11	Installation power	120kw
12	Man power	3
13	Layout	45000X4000X2500mm
