ZAY7045V/1 variable speed and auto-feeding manual milling and drilling machine
| US$1,350.00-1,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7045V/1
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
800X240mm
Drilling Capacity
45mm
Spindle Travel
130mm
Spindle Taper
Mt4/R8
Motor Power
1.5kw
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month
Packaging & Delivery
Package Size
80.00cm * 90.00cm * 120.00cm
Package Gross Weight
400.000kg
Product Description

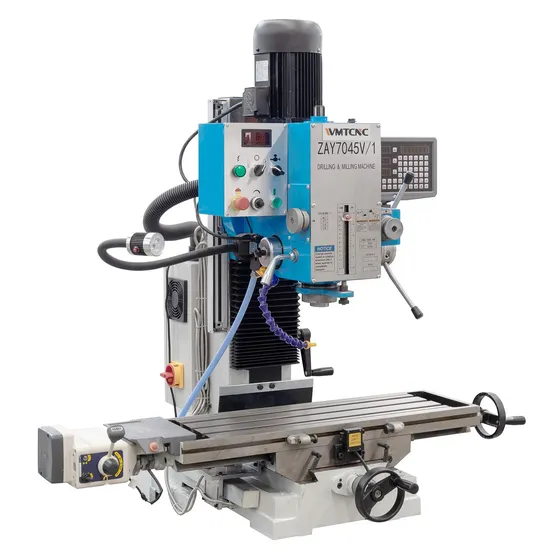

Manual milling and drilling machine ZAY7045V/1
Features:
Variable speed type.
Gear head and square column.
Gear drive,lower noise.
Accurate position,Strong rigidity,Strong cutting power.
High precision bored and honed milling head. Main specification
| Item | Unit | ZAY7032V ZAY7040V ZAY7045V | ZAY7032V/1 ZAY7040V/1 ZAY7045V/1 | |||||
| Max.drilling capacity | mm | 32 | 40 | 45 | 32 | 40 | 45 | |
| Max Face mill capacity | mm | 63 | 80 | 80 | 63 | 80 | 80 | |
| Max End mill capacity | mm | 20 | 32 | 32 | 20 | 32 | 32 | |
| Distance from spindle nose to table | mm | 400/400/450 | 450 | |||||
| Min.distance from spindle axis to column | Mm | 260 | 260 | |||||
| Spindle travel | Mm | 130 | ||||||
| Spindle taper | mm | MT3,MT4 or R8 | ||||||
| Range of spindle speed(2 steps) | 100-530R.P.M, 530-2600R.P.M | |||||||
| Auto-feeding step of spindle | 6 | |||||||
| Automatic feeding amount of spindle | Mm/r | 0.06-0.30 | ||||||
| Swivel angle of headstock (perpendicular) | ° | 90 | ||||||
| Table size | mm | 800x240 | ||||||
| Forward and backward travel of table | mm | 175 | ||||||
| Left and right travel of table | mm | 500 | ||||||
| Motor power(AC) | KW | 1.1 | 1.1 | 1.5 | 1.1 | 1.1 | 1.5 | |
| Net weight//Gross weight | KG | 300/350 | 310/360 | |||||
| Packing size | 770x880x1160mm | |||||||
