DIY Tube Flexible 360 Degree D18 LED Neon Rope LED Light RGBW

DIY Tube Flexible 360 Degree D18 LED Neon Rope LED Light RGBW

US$31.88
2-49 Meters
US$28.98
50+ Meters

Basic Info.

Model NO.
MF328W336G90
Lamp Body Material
PC
LED Numbers/M
120pcs/m
Color
Multi-color
LED Type
SMD 3528
Life(h)
25000
Voltage
24V
IP Rating
IP65
Certification
CE, RoHS
Rated Current
0.6~0.8A/M
Rated Power
14.4
Standard Length
5000 mm
Material
Fumed Silicon
Transport Package
Little Carton in Big Carton
Specification
Dia 18mm
Trademark
OEM
Origin
China
Production Capacity
50000meters/Year

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

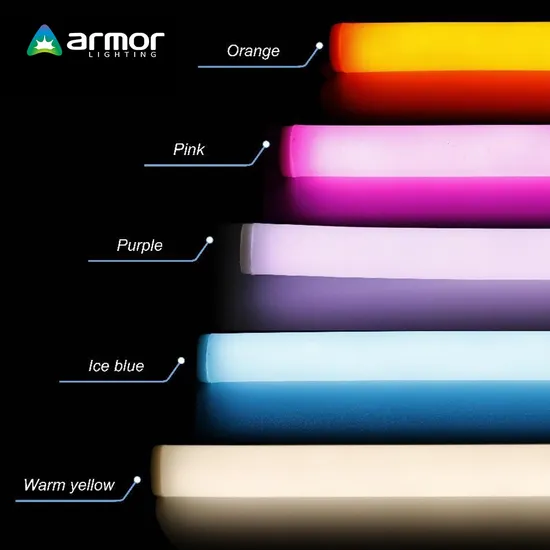

360° D18 Neon Product advantage
PRODUCT FEATURES-Circular tube profile supports 360° circular luminous surface, uniform luminous area without dark area, suitable for space decorative lighting; -Free to cut any length can be rigid, flexible, plasticity, bending and pliable; -IP67 waterproof grade, can be used outdoors, the use of silica gel material, flame retardant, corrosion resistance and UV resistance; -50000 hours long life, 5 years warranty, UL and CE certification;-High transmittance high purity silica gel material, protection grade IP67; -Support multiple installation methods such as hanging and surface installation..advantage:
compared to D25 Neon,D25 colloid weighs 570g,while D18 only 295g, N.W for a meter is around 315g,Colloidal product decreased by 50%,price is around 11usd. .Smaller bending diameter,D25 Min. bending diameter is 200mm, D18 vertical bend can reach 150mm.
Cut as your mind360° Light-Emitting
SPECIFICATION
DimensionDiameter 18mm
Color Rendering IndexRa>90
Beam Angle360°
Operating Ambient temperature Ta-20-45° C [-4~113° F]
Lifespan50,000H
Input Current/m0.6~0.8A/M
Static Electricity1000V (ESD)
Warranty5years
Enery GradeG
General Parameters
IES Data
Drawing
1,Use D18 tube,appearance white,Spray handle oil after the product process;
2,Produce size ∅18mm±0.25mm.3,The head end uses a flat cap with front wire outlet which has same size as strip;
4,Use waterproof quick wire connector for easy splicing;Cable entry method
Accessories color can be customized
Notice: 1. Luminous flux or CCT 2700K is 10% lower, or CCT 3000/3500K is 5% lower, for CCT 5000K/ 6500K is the same compared with 4000K. 2. Energy efficiency dass of regulation (EU)201 9/2020 is F(CRI80) for 4000K and G(CRI80) for CCT, it waries depending on CRI and CCT. 3. The transmission direction of data must be from PI to Po following the arrow printing on FPC for DMX/SPI version, and can't be made by reverse connection, otherwise the strip will be out of control or even domaged. INSTALLATIONThe LED neon Flex can be bendable and twistable any angle, like the following drawing; Accessory: Entry Cap, and End Cap, Mounting Clip.
You can be creative to determine the neon display effect.
Ceiling mounting
Hanging mounting
APPLICATION
Other specifications
https://armorlighting.en.made-in-china.com/product/HOZaiCzUCrAV/China-Flexible-360-Degree-LED-Neon-Rope-RGBW-with-PC-Tube-for-Decoration.html
https://armorlighting.en.made-in-china.com/product/POYaRBxCJgtD/China-360-Luminous-LED-Neon-Rope-RGB-DC24V-with-PC-Tube-for-Decoration.html
PACKAGING&SHIPPING TERMSPacking Method:
Packing with Cartoon
1. FedEx/DHL/UPS/TNT for Door-to-Door;2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;3. Customer specified freight forwarding mode of transport
OUR COMPANYSince 2008 Armor lighting step into the led lighting industry and focus on shelf and retail display lighting area .
Armor very experienced and advantageous in products customizing and considering more for our customers.
Armor factory is certified by IS09001 2008 and ISO/TS16949 2009.
Armor have a strong team of R&D and sales service ,and more than 200 skilled shop-workers. The sales revenue of 2018 exceeded 25million US dollars.Equipped with advanced manufacturing facilities.
Armor devotes much attention to internal management and implements 6S management in order to improve the internal operation and quality management system. Armor Lighting dedicates our-self to be a reliable supplier and partner in LED lighting industry.Armor has achieved many international certificates, including CE, ROHS, ERP, FCC, UL and PSE etc, to satisfy customers needs from different countries and regions.
FAQ
Q1: What is your minimum order quantity?A:Usually MOQ is 50m, but we also accept small order for trail.
Q2:Is a free sample order available?
A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.
Q3:How long of the lead time?
A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days.
Q4:Can LED strip be customized?
A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM.
Q5:What's your warranty?
A:We have 3 years and 5 years warranty
Q6:Do you supply sea shipment?
A: YES,We have our own shipping agency FOB Guangzhou,supply FCL&LCL.
Q7:Does your lighting equipment have CE or more certificates?
A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.
Q8:Is it possible to put our logo on your product or product packaging?
A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc.
The minimum order quantity depends on different type of strip.
