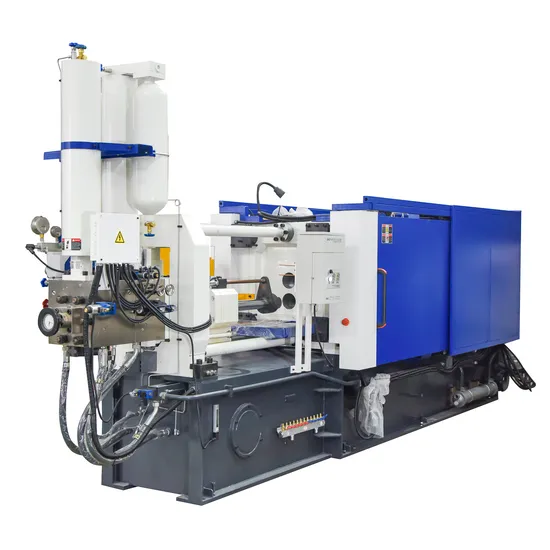

Cold Chamber Die Casting Machine for Metal Castings Manufacturing C/200d

Cold Chamber Die Casting Machine for Metal Castings Manufacturing C/200d

US$10,000.00-400,000.00 1 Set (MOQ)

Basic Info.

Model NO.
C/200D
Condition
New
Automatic Grade
Automatic
Certification
CE, RoHS, GS, ISO9001
Type
Special Casting
Metal Type
All Metal
Packing Condition
Standard Package
Modes of Transportation
Customer Designation
Date of Delivery
30~45days
Transport Package
Standard Packing
Specification
CE, SGS, ISO9001: 2008, CQC
Trademark
WELLISH
Origin
Ningbo China
HS Code
8454301000
Production Capacity
500PCS/Year

Packaging & Delivery

Package Size
551.00cm * 136.00cm * 253.00cm
Package Gross Weight
7800.000kg

Product Description

Specifications
1.cold chamber die casting machine.
2.IS09001:2000 Certification and CE Safety Certification
Strategy

The goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 20 years, we always provide perfect cold/ hot chamber die casting machine and sincere service.

* With a history of over 20 years * Factory Area : 20,000 square meters
*Employees : More than 200 *Production Capacity : 1,000-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 50sets

SCAN:

200T Cold die Casting Machine

2.Suitable for aluminum,zinc and copper alloy

3.PLC and person-machine

4.4-rod pilot elastic framework for excellent rigidity

5.Proportional relief and flow control valves

6.PLC and person-machine interface

What product this machine can make? ----- The cold chamber die casting machine is suitable for die casting of non-ferrous metal with low melting point, such as aluminum, zinc and copper. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.Deals with the research and manufacturing of high precision die casting machines for many years(start from 1995). With "WELLISH"brand cold chamber series(140-2080Tons), hot chamber series(30-200Tons), MG ALLOY series(140-1380Tons). Frequency translation&servo drive saving-energy system techology, with high quanlity moulds and furnace and auxiliary machines provide AL/MG/Copper/Zinc Alloy prodct solutions for you.
Specification C/200D
Clamping Force KN 2000
Clamping Stroke mm 385
Die-Thickness (Min-Max) mm 200-580
Platen Size(H*V) mm 720x720
Space between Tie-Bars mm 480x480
Diameter of Bars mm 85
Casting Force KN 99-250
Casing Stroke mm 370
Injection Plunger diameter mm 50
60
Max. Casting Volume (AL) kg 1.3
1.9
Max.Casting Volume(MG) kg 0.8
1.1
Casting Pressure (Min-Max) Mpa 50.4-127.3
35-88.4
Cast Projection Area Cm2 141-700
Injection Position mm 0, -140
Ejector Space mm 150
Extruding Flange Diameter mm 110
Height of Extruding Flange Pattern mm 10
Ejecting Force KN 109
Ejecting Stroke mm 85
Dry Cycle Time s 6
System Working Pressure Mpa 16
Motor Power KW 15
Tank Capacity L 595
Machine Weight kg 7800
Overall Dimensions of
Machine (L*W*H)
mm 5510*1360*2530

WELLISH precision die casting machine are widely used for lead , zinc,copper , aluminum , magnesium etc non-ferrous die casting in the industries of aviation & aerospace , ship & vehicles , electric and electronic appliances , instruments and meters , medical facilities , hardware's etc.
Factory Panorama
Exhibition Show
Packaging & Shipping
ALLWAY---ALWAYS ON THE WAY WITH YOU !
