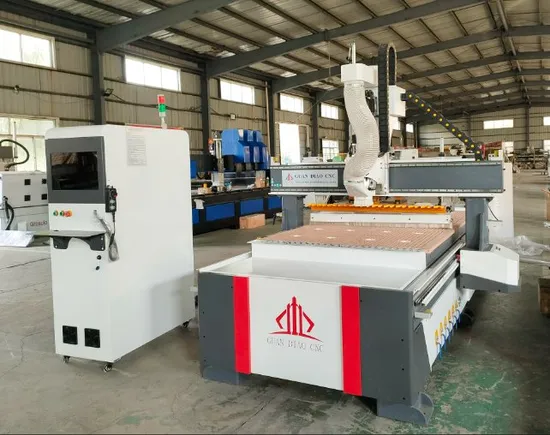

Multifunctional 1325 Atc 4*8FT Automatic Tool Change CNC Wood Router Engraving Machine

Multifunctional 1325 Atc 4*8FT Automatic Tool Change CNC Wood Router Engraving Machine

US$12,500.00
1-4 set
US$8,600.00
5+ set

Basic Info.

Model NO.
ST-1325 ATC
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Working Area
1300*2500mm
Frame
Heavy Duty
Table Surface
Vacuum Suction Table
X Y Transmission
Taiwan Hiwin Square Guide Rails 20/25mm
Z Transmission
Ball Screw
Spindle Power
9kw Atc Spindle
Driver Motor
AC Servo Motor
Inverter
Fuling or Sunfar
Control System
Syntec or Lnc System
Working Voltage
380V
Command Code
G Code
Software Compatibly
Artcam/Artengraver/Type3/V9/Jd Paint
Packing Materials
Plywood Box
Transport Package
Wooden Package
Specification
1950*2880*1850mm
Trademark
Samet Intelligent Manufacturing Co., Ltd.
Origin
Shandong Jinan
HS Code
8465990000
Production Capacity
1000set

Product Description

Product Description
* The bed is designed with thickened square tube, and the machine runs more smoothly.
Taiwan LNC, Syntec or Weihong panel control system, automatic loading and unloading can be used for multi-process, the machine can also be used in machining center row drilling machine can place 8~24 tools at the same time, automatic tool change during machining process, improve processing efficiency .
* Automatic lubrication system, independent chassis, vacuum adsorption table. All three axes adopt Taiwan original square rail, xy axis adopts domestic famous high-precision helical rack and pinion, and z axis adopts Taiwan original nut TBI lead screw.
* The machine can automatically complete the work of feeding, punching, engraving, cutting and unloading, which can greatly save labor costs and improve processing efficiency.
It is an indispensable helper in the panel home industry. Optional automatic typesetting software, only need to input the sheet size, the software optimizes its typesetting, the sheet usage efficiency can reach more than 90%, improve the sheet usage efficiency and reduce the cost of raw materials.
Detailed Photos
Machine Type
ATC CNC Router
Travel (X Axis)(mm)
1300mm
Travel (Y Axis)(mm)
2500mm
Repeatability (X/Y/Z) (mm)
200mm
CNC or Not
CNC--NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
Working voltage
AC380 three phases
Power (kW)
10
Weight (KG)
1000
Warranty
2 years
Spindle
9.0 kw Air cooling ATC Spindle
Function
Cutting Engraving Non-metal Materials
Working table
Vacuum Working Table with 5.5kw vacuum pump
Motor
Stepper Motor
Guide rail
Taiwan Hiwin Square Guide Rail
Driving system
Leadshine Drive
Range of Spindle Speed(r.p.m)
18000-24000 rpm
Positioning Accuracy (mm)
0.02mm
Number of Axis
3 or 4
No. of Spindles
Single With Auto Tools Change Functions
Working Table Size(mm)
1300x3000mm,1500*3000mm,2000x3000mm etc. are optional

China top brand HQD 9.0kw ATC spindle Powerful and can change cutting tools automatically.
Automatic oil lubrication for guide rail and rack after setting time,save labor,easy for maintenance for machine.
Equipped with a 10-12 tool linear tool magazine, which can quickly and freely change tools. Change tools within 5 seconds.
Vacuum + T-slot table
The entire workbench is divided into six partitions, which are controlled separately for easy adjustment
Fixture
it is used to control the drill bit.
Control system LNC 2200 or syntec
samples
Applicable products: * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. * The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments. * Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds. * Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Packaging & Shipping
Company Profile
SAMET Intelligent Manufacturing Co., Ltd. is a scientific and technological enterprise specialized in the research, development and manufacture of automatic woodworking equipment and laser CNC equipment. After nearly 10 years of development experience, the company has a 36000 square modern chemical plant in the beautiful spring city of Jinan, and has become a reliable and reliable CNC machine manufacturer at home and abroad.
SAMET has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered inJINAN, China .It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
SAMET has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. SAMET adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.
FAQ
Q1: How to make an order?
A1:You can order online , Or Email us your details, and we will contact you immediately and help you proceed with the orders.
Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes, we will give you best support according to your quantity.
Q3: What is your delivery time?
A3:Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.
Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.
Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.
Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
Q7:What payment do you accept?
A7:Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support
After Sales Service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.2.We will provide free training, free maintenance, free technical upgrading,3.We accept the ODM, OEM4.Oversea agents wanted, if any interest, pls let me know
