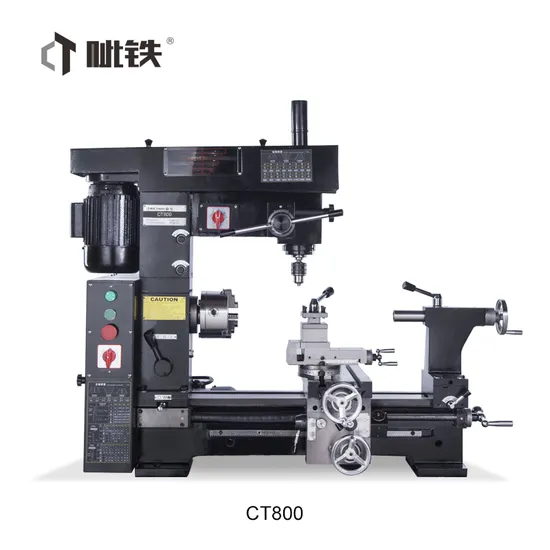

Factory Price CT800 Hq800 At800 Combo Lathe Machine Milling Machine
| US$1,050.00-1,380.00 | 10 Sets (MOQ) |
Basic Info.
Model NO.
CT800
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
68
Product Description
| Specifications | ||
| MODEL | CT800 | |
| TURNING | Swing over bed | 420mm(16-5/9") |
| Distance between centers | 800mm(20"/31-1/2") | |
| Max. longitudinal travel | 740mm(17-1/3"/29-1/8") | |
| Max. cross travel | 200mm(7-7/8") | |
| Taper of spindle | MT4 | |
| Spindle hole | φ28mm(1-1/9") | |
| Step of spindle speed | 7 steps | |
| Range of spindle speed | 160-1360rpm | |
| Barrel travel | 70mm(2-3/4") | |
| Taper of center | MT3 | |
| Metric thread range | 0.2-6mm | |
| Inch thread range | 4-120T.P.I | |
| Longitudinal range of automatic feeding | 0.05-0.35mm/ 0.002-0.014" | |
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014" | |
| DRILLING & MILLING | Max. drilling capacity | φ22mm(7/8") |
| Worktable size (L×W) | 475×160mm(18/1-2"×6-2/7) | |
| Max. end mill | φ28mm(1-1/9") | |
| Max. face mill | φ80mm(3-1/7") | |
| Distance between spindle center and column | 285mm(11-2/9") | |
| Distance between spindle and worktable | 306mm(12") | |
| Headstock travel of up and down | 110mm(4-1/3") | |
| Spindle taper | MT3 | |
| Step of spindle speed | 16steps | |
| Range of spindle speed | 120-3000r.p.m | |
| Swivel degree of headstock | ±360° | |
| MOTOR | Motor power | 0.75kw |
| SHIPMENT DATA | Packing size | 1430/1130×580×1100mm |
| N. weight/G .weight | 245kg/280kg | |
| Loading amount | 40pcs/20'container |
