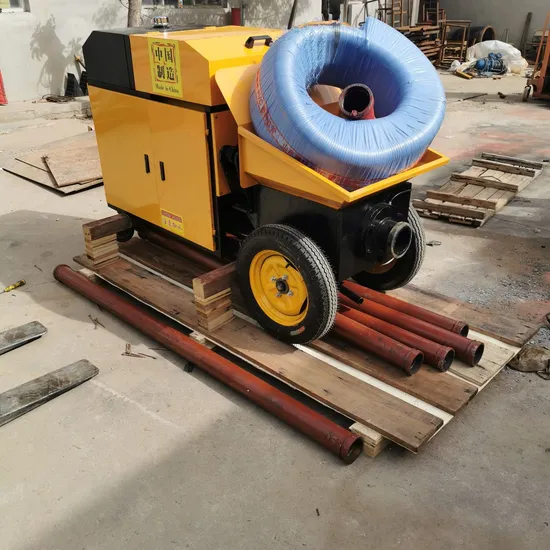

Hydraulic Secondary Structure Column Concrete Pouring Pump Transport Pump Global Sell

Hydraulic Secondary Structure Column Concrete Pouring Pump Transport Pump Global Sell

US$2,400.00-3,000.00 6 Sets (MOQ)

Basic Info.

Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
50m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Motor Power
15kw
Maximum Outlet Pressure
10MPa
Hopper Capacity
130L
Whole Machine Weight
700kg
Model
Qk-15
Transport Package
Wooden Box
Specification
2250 * 1060 * 1320mm
Trademark
yurui
Origin
China
HS Code
848110
Production Capacity
12000 Sets/Year

Product Description

Machine features:
1. There is a switch on the electrical control box for easy adjustment
2. High construction efficiency and good quality.
3. Small in size, easy to transport on site, low in accessory costs, and simple to maintain.
4. Easy to use, fast, material saving, labor saving, and more cost-effective.
This product adopts hydraulic slurry feeding and vibrating screen filtration dual cylinder reciprocating operation, which can fully transport various types of mortar, fine aggregate concrete, etc. in construction applications. This product has the characteristics of large displacement, high pressure, labor and material saving, and flexible movement, and is a commonly used mortar conveying equipment.
Model QK-15
Motor power 15KW
Maximum conveying capacity 5-8m ³/hour
Maximum outlet pressure 10Mpa
Maximum bone particle size ≤ 20mm
Hopper capacity 130L
Diameter of conveying pipe 80mm
Dimensions 2250 * 1060 * 1320mm

Whole machine weight 700kg
Horizontal conveying distance 50m
Vertical conveying distance 20m

FAQ
Q: Are you a manufacturer of the Secondary pouring pump?
A: Yes, we are. our company has passed ISO and CE certification, products have been exported to more than 20 countries and regions.
Q: How is your after-sales service of the Secondary pouring pump?
A: We offer a one-year warranty for the entire machine and a 6-month warranty for electrical components,We have a number of after-sales services that provide 24-hour technical support via phone and e-mail.
Q: What is your lead time of Chinese Secondary pouring pump?
A: It takes 7-10 days for normal goods and 15-25 for customization.
Q: What is your payment term of the Secondary pouring pump?
A: T/T, L/C.
Q: Is it convenient to visit your factory and Secondary pouring pump? How can I get there?
A: Welcome you to visit our company. We will pick you up when you arrive.
If you can't find what you're looking for, please contact us and place a custom order. We can produce according to your sample or drawing.
