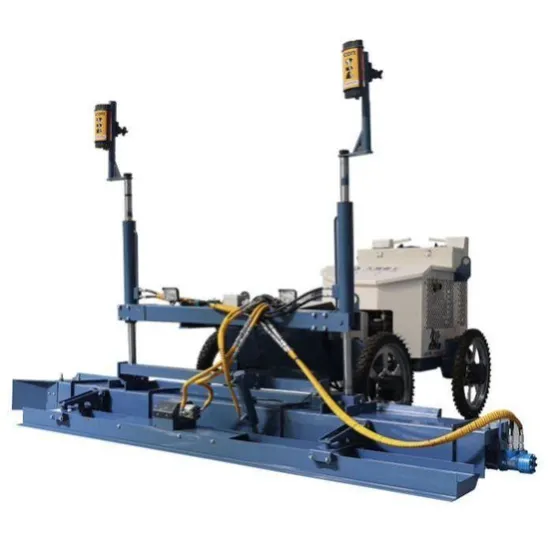

Professional Tool Concrete Laser Screed Machine Floor Leveling Machine

Professional Tool Concrete Laser Screed Machine Floor Leveling Machine

US$20,000.00
1-2 Unit
US$19,000.00
3-4 Unit
US$18,000.00
5+ Unit

Basic Info.

Model NO.
JB35-30
Type
Laser Screed Machine
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
White
Weight
1000kg
Engine Power
22.8kw
Fuel Volume
20L
Hydraulic Oil Volume
35L
Vibration Plate Width
3m
Transport Package
Wooden Box
Specification
3300*3460*1650mm
Trademark
Jiubang
Origin
China
Production Capacity
6000units/Year

Product Description

Professional Tool Concrete Laser Screed Machine Floor Leveling Machine Product Description
Engine model Briggs & Stratton 38E3
Engine type Gasoline, air-cooled 4-stroke, dual cylinder engine
Engine power 22.8KW/31ps/35ps
Fuel volume 20L
Hydraulic oil volume 35L
Laser emitter Swiss Leica transmitter
Laser receiver Swiss Leica receiver
Laser system control effect Flat, sloping, double sloping (3D)
Laser system control mode Laser microsystem automatic control automatic leveling
Paving method Hydraulic stirring cage paving
Vibration mode / excitation force Hydraulic vibration/2000N
Vibration plate width 3000mm
Leveling thickness 60-300mm
Walking drive Integrated reducer motor
Walking speed 0-4Km/h
Walking tire Solid anti slip and anti puncture tires (optional)
Body size 3300*3460*1650mm
Weight 1000kg


Product Show
Company Profile
Jiubang Heavy Industry, located in Jining, Shandong, China, is a well-known enterprise in the heavy machinery manufacturing industry and a national high-tech enterprise. The company started in 2010. The new factory covers an area of more than 60,000 square meters, with 370 employees and more than 350 after-sales outlets. An enterprise integrating industry and trade, focusing on the research and development, design, production and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklift trucks, new energy engineering vehicles, laser screed machines and other products. With laser cutting machines, bending machines, fully automatic digital processing equipment, and a number of technical patents, it provides better products and services for global customers. The products are exported to more than 20 countries and regions including Russia, Southeast Asia, Kazakhstan, the Middle East, and Africa. We sincerely invite businessmen from all over the world to develop together.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Can you meet my special requirements?
A: Yes, we accept customization.
3: What about the delivery time?
A: Generally, it will take 3 days after payment arrived.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
