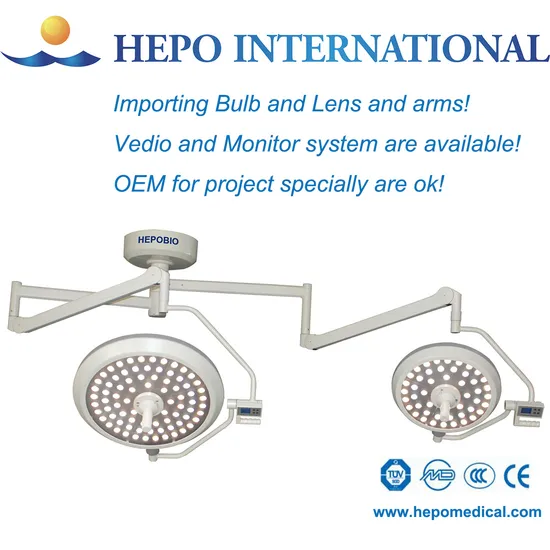

Ceiling Top CE Certificated Double Head Surgical LED Shadowless Operating Lighting Lamp

Product Description

Ceiling Style Surgical Shadowless LED Lamp
HP series Cool Light LED does not release infrared rays,which occurs heat, and prevents tissue drying caused by heat providing a pleasant operating environment.(less than 1 degree of heat above operator's head).It is ECO-Friendly System which uses only 40% of electricity compared to Halogen lamp.

Using the imitation of the German arm, the import of the spring. German imports of arms optional
Main Features:
1. Full close streamline lamp body design completely meets the demand of the sterilization and high standard of laminar flow purification in the operation room. Curve and slippy surface prevents deposition of dust very well, convenienting purified air reaching the surgery surface of wound smoothly.The lamp-chimney is made of aluminum alloy, ultrathin and streamlined shape reduces the air drag, the thickest part of lamp-chimney is not more than 18cm.

2.The main light use more than 300pcs independent LED illuminant (lamp cup one main and six vice's structure), divided into multiple independent illuminant group, vice light use more than 200pcs independent LED illuminant (lamp cup one main and six vice's structure), divided into multiple independent illuminant group; every lamp use double CPU control, every group of LED illuminant controlled by special circuit chip, any group failure will not affect the normal use of shadowless light

3. Use international advanced warm white LED as shadowless illuminant, environmental, lower energy consumption LED bulb, bulb life: ≥80000 hours

4.LED do not engender infrared ray and ultraviolet radiation, it doesn't have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no Radiation pollution

5.Micro computer digital control, illumination can be adjustable; stepless adjustment, eight segments continuous indicating, adjustment range: 1%-100%, backlight illumination: ≥30 Lux; it offers illuminance memory function

6.Adopt restrain interference design of electromagnetic wave, avoid disturb with the other equipment in operating room

7.Use satlite oval swing pipe design, can install 4 cantilever devices in complex operating room, also can be reserved per hospital's request, convenient to upgrade and provide the perfect solution for the increasing multi-media request of hospital

8. Balanced system using imported German Ondal arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°, equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after long time use

9. The handle on the central of lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment, easily adjust, flexible fixed; Adopt balanced arm, handy operate, and make sure the lamp stable during operation; has C-arm joint control panel, has luminance prompt facility, provide environment lighting models

Model	HP-SL750C
LED Light Style	LED-I	LED-II
Illuminance (Lux)	180,000	160,000
Color temp (Kelvin)	5000	5000
Colorrenderingindex(Ra)	98	98
Lamp electric light intensity control	standard	standard
Light adjust range	1%-100%	1%-100%
Temp rise (doctor head)	0.5°C	0.5°C
Temp rise (Surgical field)	≤1°C	≤1°C
Illumination depth (cm)	180	180
Diameter of spot (mm)	160~280	160~280
Bulb type	LED c	LED
Bulb life (h)	≥80000	≥80000
Consumed power	80	48
Input power	100-240 VAC, 50/60 Hz

10.Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination. Unify ABS operate handle and mid-operation handle of Lamp rim convenient to operate. Product execute international IEC standard
