Various Models of Button Batteries with RoHS Certification

Product Description

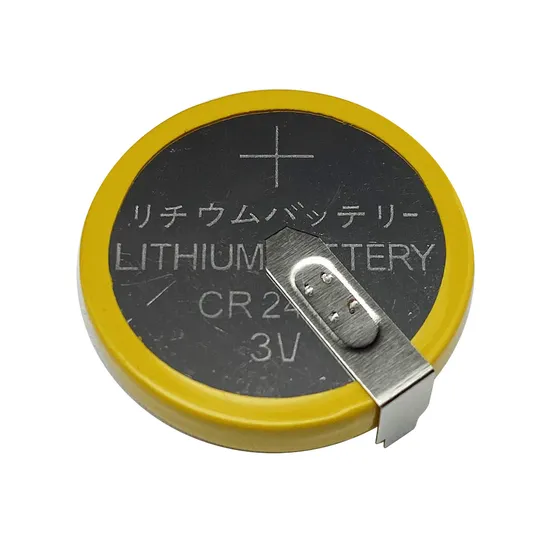

CR2450
Battery Outline Dimensions
Packaging and Marking

Dimension of box	Net weight	Gross weight
36×30×19cm	15.6KG	17KG

Normal package: 2400 pcs per box.
CR2450 Discharge Curves

Model	Discharge Characteristics(23ºC)				Dimensions		Weight (g)
	Nominal Voltage (V)	Nominal Capacity (mAh)	Recommended Continuous Drain		Diameter (mm)	Height (mm)
			High-drain Pulse (mA)	Standard Current (mA)
CR927	3.0	32	3	0.1	9.5	2.7	0.7
CR1025	3.0	30	5	0.1	10.5	2.5	0.8
CR1130	3.0	40	5	0.1	11.6	3.0	1.0
CR1212	3.0	20	5	0.1	12.5	1.2	0.6
CR1216	3.0	24	5	0.1	12.5	1.6	0.7
CR1220	3.0	36	5	0.1	12.5	2.0	0.8
CR1225	3.0	50	5	0.1	12.5	2.5	0.9
CR1616	3.0	55	5	0.2	16.0	1.6	1.2
CR1620	3.0	70	5	0.2	16.0	2.0	1.3
CR1625	3.0	85	5	0.2	16.0	2.5	1.8
CR1632	3.0	125	10	0.2	16.0	3.2	2.3
CR2016	3.0	90	10	0.2	20.0	1.6	1.7
CR2025	3.0	165	15	0.5	20.0	2.5	2.4
CR2032	3.0	220	15	0.5	20.0	3.2	3.0
CR2330	3.0	250	20	0.5	23.0	3.0	4.0
CR2354	3.0	560	20	1	23.0	5.4	5.8
CR2430	3.0	300	20	1	24.5	3.0	4.5
CR2450	3.0	600	25	3	24.5	5.0	6.5
CR2477	3.0	1000	20	1	24.5	7.7	9.5
CR3032	3.0	550	25	1	30.0	3.2	6.8

Battery processing service
According to special needs of terminal products, we can provide supporting battery processing services including Blister Pack, solder wires,solder tabs.
Discuss with us before making an order, we can help you find out the batteries that suit your products properly.
