Observation Elevator From Chinese Manufacturer

Observation Elevator From Chinese Manufacturer

US$18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
IO20
Type
with Machine Room
Speed
1.00 - 2.00m/s
Capacity
500-1000kg
Persons
11 - 19
Shape
Semi-circular
Number of Sides
Four
Driving Type
AC Elevator
Control Mode
Collective Selective Control
Elevator Door
Center Opening Door
Door Knife
Double
Drive
Vvvf
Door
Pm Vvvf
Lead Time
50days
Pkg
Wooden Box
Transport Package
Standard Export Package
Specification
standard
Trademark
BORAL
Origin
China
HS Code
84281010
Production Capacity
5000 Set/Year

Product Description

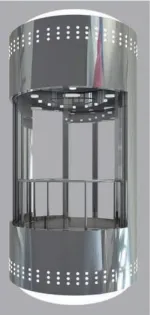

Boral Panoramic elevator is integrated transportation between passenger and architecture. It just like the eyes of building let the architecture character to outpour completely. The 270 degree perspective will not make passenger to absent each external scenery; which is a unification of architectural function and visual aesthetics sense Machine roomless and compact machine room structure, each alternative can meet your multiple building design requirements.
-- 270 degree viewing
-- Compact machine room and machine roomless
-- Control board Nice 3000 plus
64 bits micro computer with three 8 bits sub micro
Serial access communication technology
Group control system up to 8 elevators (Option)
-- Gearless Traction Machiner
Permanent Magnet Gearless tract machine.
Compare to traditional traction machine, it saves energy consumption more than 40%.
It is designed for sound environmentally friendly, the noise range is generally be low 5 ~ 10 decibels.
It has Long service life, safe and reliable.
No oil, it does not need to be lubricated.
Save more construction space for our customers
-- VVVF door operator
Synchronized belt drive with big driving capacity and higher control accuracy.
Door operator install on the top of elevator car directly and it can be adjusted conveniently.
Rated frequency conversion motor with low frequency and large moment force.
Advanced VVVF digital motor processor and IPM intellectualized power module.
It uses operation front panel with digital display.
