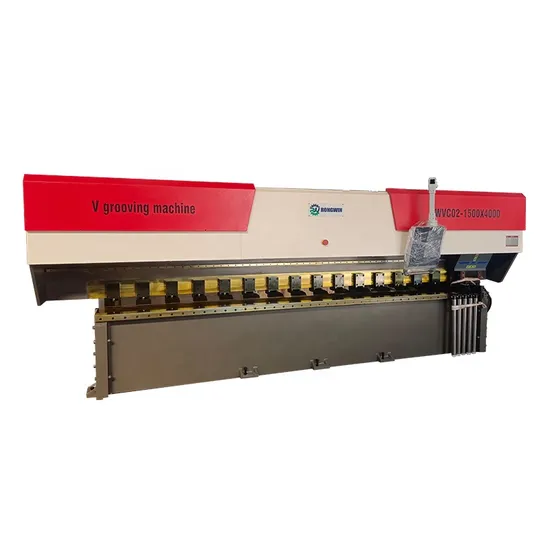

Rongwin Automatic CNC V Grooving Machine for Sheet Metal

Product Description

Product Introduction
Product overview
Stainless steel CNC v groove machine manufacturer supplier exporter
Rongwin vertical style CNC hydraulic V grooving machine is widely used in the sheet metal V-groove,U-groove and other irregular groove processing, which is including stainless steel,aluminum,aluminum plate,copper,iron, plastic,wood,acrylic panels and other special plates.Particularly,it is can applicable to the V-groove processing of sheet metal before bending. Our CNC V grooving machine (V slotting machine, planer, stainless steel V-slot machine) is suitable for industries that require high-precision processing of plates, such as elevators, mounting materials, stainless steel processing, household appliances, and prop display. It is designed and manufactured according to the special needs of the middle and high-end decoration industry, elevator manufacturing and other industries. It can perform V-shaped grooves on stainless steel sheets, iron plates, copper plates and other materials. New metal sheet groovers such as special accessories can also perform work such as grinding, polishing, and wire drawing on thin metal sheets and profiles.
Product advantage
1.Our machine use structure design,Overall rigidity,small deformation.
2.This machine beam is fixed,has feeding system,worktable levelness is within ±0.03mm.
3.Blade rack move right and left by synchronous belt,V-cutting process is very stable,and the cutting surface is smooth.
Application areas
RONGWIN CNC V grooving machine (V slotting machine, planer, stainless steel V-slot machine) is suitable for industries that require high-precision processing of plates, such as elevators, mounting materials, stainless steel processing, household appliances, and prop display.
Our Advantages
Working performance
V Groove machining is primarily used to facilitate the bending or folding of various materials and creates a V-shaped cut or channel along the surface of a material. This cut along the fold line acts as a hinge, allowing the product to achieve 90-degree bends with relatively small bending radii. The V-grooving is also known as score-folding, V-cutting, and back-scoring.
Product configuration
Technical parameter

Series No.	Items	Specification
1	Model	Vertical style 1500×4200
2	Metal thickness the machine can work on	0.4-8mm (>8mm can be customized)
3	Metal Length *Width	1500x4200mm
4	V cutting speed	5M-70M/min
5	Back feeding device moving	0.5-20M/min
6	X axis minimum setting unit	0.01mm
7	X axis Positioning accuracy	±0.02mm
8	Y axis minimum setting unit	0.01mm
9	Y axis Positioning accuracy	±0.02mm
10	Z axis minimum setting unit	0.01mm
11	Z axis Positioning accuracy	±0.02mm
12	X axis motor power	1.5KW
13	Y axis motor power	3KW
14	Z axis motor power	0.4KW
15	Workbench flatness	±0.01mm
16	Material Feeding style	Backside feeding
17	Worktable style	Bolted style
18	Tool holder	Double tool rest
19	Max. one-time grooving depth	1.2mm
20	Dimensions	5800*2400*1950mm

Packaging & Shipping
Our company
Founded in 2017 years ,Nanjing RONGWIN Machinery Technology Co., Ltd is focus on press brake manufacturing and a professional one-stop smart custom metal solution service supplier . We are committed to building a strong Chinese metal working machinery and spare parts supply Chain System .
We have a dream "Let China's one-stop smart custom metal solution serve the world " and "We want to become a respected Chinese press brake manufacture,live 100 years " That's why we're always trying to keep our users satisfied .
We are specialized at metal working machinery and spar parts, like press brake, panel bender,fiber laser cutting machine, shearing machine, rolling machine, V grooving machine, hydraulic press, power press, ironworker, notching machine, tube cutting machine,tube bending machine ,HVAC Dust Machine, punching die, blades, kinds of toolings, etc. We can give customer all the aspect solutions for the metal industry fabrication machinery. We can guide customers for choosing their metal processing equipment so that customer can get the most cost-effective solution by our guide. Meanwhile we also can do O E M & O D M service. We have professional engineer support, high efficiency sales team and competitive price , we design our machine in a top class level which makes our machine in a good looking appearance , due to the good after sale service and reliable quality, we have sold to many foreign customers, they like our machines, they usually buy from us not only one time, now we already sold to more than 70 countries, including Europe, South America like Brazil, U S A, Canada, Russia, Vietnam, Pakistan, Australia ,New Zealand, Africa, Middle East country etc. After several years' development, We already applied some patent, and also got CE certificate and SGS for Press Brake, Laser Cutting machine,Panel Bender,V grooving machine etc, we will grow up together with our customer's support, we believe that our company will have a bright future.
Please trust ROGNWIN .We are always trying to make you satisfied .
FAQ
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate
