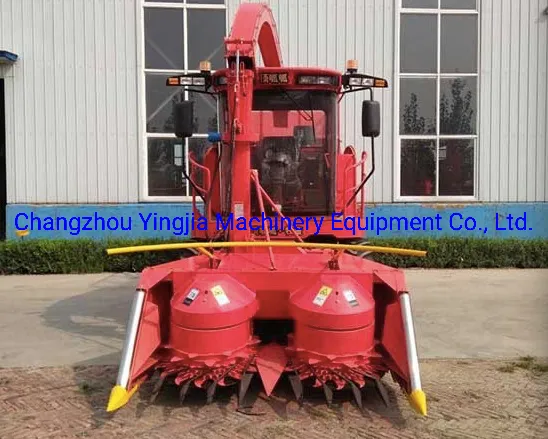

Self-Propelled Tractor Mounted Napier Forage Silage Harvester
| US$50,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
W2100
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Engine
Weichai
Cutting Header
2.1m
Engine Power
175HP
Mini Groud Clearance
380mm
Weight
5800kg
Mini Turning Radius
7100mm
Specification
6780× 2200× 3800
HS Code
84295400
Production Capacity
5000units/Years
Product Description
Product DescriptionSelf-propelled tractor mounted napier forage silage harvester for grass cutter
1. The design of double discs header feeds all the crops uniformly into drum, which can cut all the stalks within the working width(not row by row), to improve the yield rate.
2. Adopted upright feeding roller, upright chaffcutter, which is simple structure and stable performance, not only cutting off the straw cuticle, but also retaining the nutrients,
3. They are equipped with Weichai inline 4-cylinder with 154hp turbo engine, efficient and high-powered.
4. The new cab with 270 degree wide field of vision and simple operating system makes it easy to drive.
5. Equipment with storage containers of forage makes forages recycle and harvest more convenient.
6. Big track and short wheelbase make it convenient and flexible to bend and turn
7. High efficiency, low price, and low fuel consumption, make this machine become more and more small and middle size pasture's first choice.
Detailed Photos
Product Parameters
| NO | Item | |||
| 1 | Model | / | 2100A | |
| 2 | Type | / | Self | |
| 4 | Dimension | mm | 5300×2100×3300 | |
| 5 | Weight | kg | 5200 | |
| 6 | Engine | Model | / | Weichai WP4G154E330 |
| Power | Hp | 175 | ||
| Rpm | r/min | 2300 | ||
| 7 | Cutting wide | mm | 2100 | |
| 8 | Min turning radius | Left | mm | 5760 |
| Right | mm | 6600 | ||
| 9 | Wheelbase | Guide | mm | 1540 |
| Driving | mm | 1630 | ||
| 10 | Tyre | Guide | / | 10.0/75-15.3 |
| Driving | / | 12.4-24 | ||
| 11 | wheelbase | mm | 2200 | |
| 12 | Min clearance | mm | 380 | |
| 14 | Minimum cutting height | mm | ≤150 | |
| 15 | Cutting header height | mm | 0-400 | |
| 16 | Harvester speed | km/h | 2-4 | |
| 17 | efficiency | hm²/h | 0.42-0.84 | |
