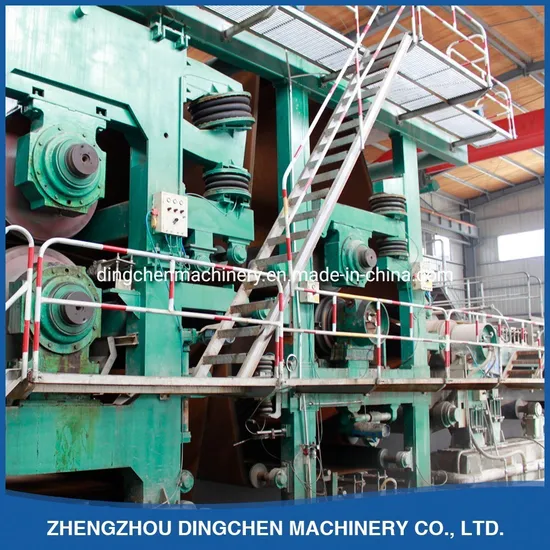

Medium Capacity Carton Cardboard Liner Fluting Corrugated Kraft Paper Making Machine

Product Description

Fluting Paper/Kraft Paper/Corrugated Paper/Cardboard Paper Making Machine Paper making machine Technical requirementPaper and pulp ratioPaper type: fluting and test liner paperPaper weight: 85-100g / m2Proportion of pulp: determined and adjusted by the user according to the productPaper machine specificationsOutput: 120t / 24hDesign width:Wire width (nominal): 2950mmPaper roll width: 2560mmFinished paper width: 2500mmGauge: 3600mm (subject to final design)Various speed:Designed speed: 400 m / minBalance speed: 450 m / minTransmission speed: 400 m / minRolling roller balancing speed: 1200m / minWorking speed: 300-400 m / minDryness:Out of wire section: 20-22% (± 1%)After press section: 44-46% (± 1%)Before sizing: 92%Paper roll machine: 92%Arrangement of the paper machine: Stand at the roll machine and look at the wire section, the drive is on the left (right) hand side.Paper machine layout form: Single layer layoutPaper Making Machine Raw materialUse Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Why choose us?
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of Paper Making Machine, we will recall it and change a new one for free;
Paper Making Machine Main EquipmentPulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments
Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame

No.	Item	Function
Pulp making section
1	D type Hydra-pulper	To break the waste paper into pulp and drop down the impurity and pins
2	High density pulp cleaner	To separate and sieve the small stone,staples,heavy impurity in the pulp
3	Fiber separator	To beating pulp again and separate long and short fiber
4	Vibrating screen	To separate and remove the small impurity(such as broken plastic tape,foam,etc)
5	Pulp refiner	To grind pulp fiber
6	Low concentration pulp cleaner	To remove the sand and tiny impurity in the water and pulp
7	Pressure screen	To screening pulp fiber
8	Impeller	To stir the pulp and make sure the pulp and water mixed well
9	Pulp pump	To provide the pulp for the needed machine
Paper making section
10	Cylinder mold part	To forming wet paper web
11	Vacuum dewatering part	To absorb the water in the wet paper
12	Press part	To dewatering by mechanical gravity press force
13	Dryer section part	To dry wet paper
14	Sizing press part	To glue paper surface to improve paper quality strength and stop printing ink spreading
15	Dryer section part	To dry paper after gluing wet
16	Calendering part	To glazing paper surface,control paper thickness,tightness
17	Winding part	To reeling output paper be a jumbo paper roll
18	Paper rewinding part	To rewind the jumbo roll paper to different size (width&diameter) according to your requirement
Boiler section
19	Gas/diesel/coal boiler	To provide high temperature and pressure steam to dryer to dry paper

Details of Paper Making Machine Description: Kraft and Corrugated Paper Making Machine is a production line that use waste books paper, wood pulp board, waste paper box, old corrugated carton, wheat straw pulp, wood etc. to produce Kraft paper,test liner paper, corrugated paper, fluting paper, cardboard paper. Kraft and corrugated Paper Making Machine Is Mainly Used as The Package Material, High Strength, Brown Color. Full Bleached or The Half Bleached Kraf Paper Pulp Is Light Brown Color , Cream Color, or The White Color. Most Are Jumbo Rolls, Some Are Sheets. The Kraft Paper Is Generally Made Into The Cement Paper Bags, Envolope, and Cables Protective Paper. Good Quality Waste Carton Recycle Corrugated Paper Making Machine. Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
