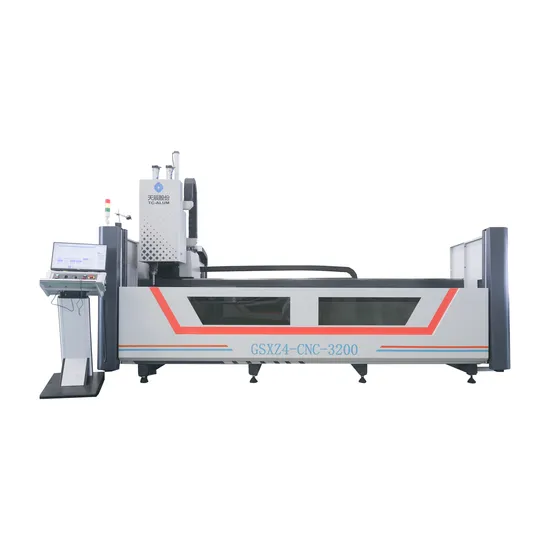

Aluminum Profile 4 Axis Window Door CNC Machine Center

Product Description

1. Machine Features:
☆ Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall or industrial aluminum profile, copper, PVC profile and etc.
★ Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the stable working, with better positioning and processing accuracy.
★ Adopting high speed electrical auto switching tool spindle, with good and reliable performance.
★ There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for short profile, which greatly improve the working efficiency.
★ Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the chippings pollution to the environment; help building a good working environment.
★ It is convenient to operate with intelligent CNC system and brief intuitive interface
★ The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at three surfaces for one time clamping.
2. Technical Parameters:

Item	Specification
X-axis Range	3500mm
Y-axis Range	450mm
Z-axis Range	350mm
X-axis Moving Speed	0~60m/min
Y-axis Moving Speed	0~30m/min
Z-axis Moving Speed	0~30m/min
1#Spindle power	8.0kw/9.6kw
2#Spindle power	1.5kw
Spindle Max Rev.	24000 r/min
Spindle Taper	ISO30
Max Processing Range	160x160x3200mm
Quantity of Clamp	4pcs
Tool magazine capacity	4 pcs
Cooling system	Micro atomization cooling
Power Supply	380V/50HZ
Air Source Pressure	0.5-0.8Pa
Area	4500mmx2300mm
Weight	2500kg
