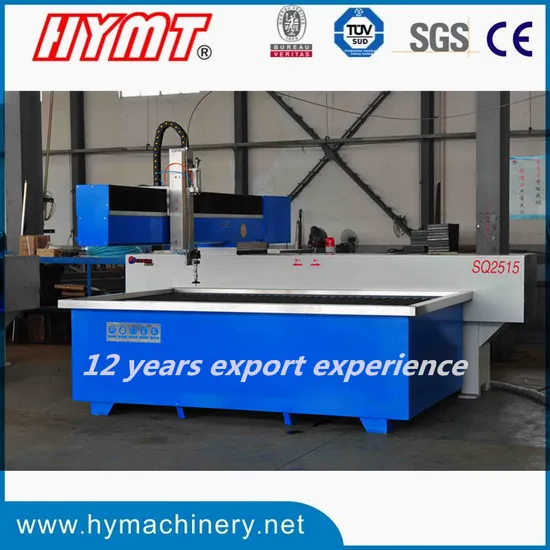

High Pressure 4 Axis CNC Waterjet Cutting Machine

Product Description

Main functions:
Our full function CNC UHP waterjet machine developed independently based on American technology, it contains the following parts:
UHP system→CNC machine tool→CNC control system→Automatic abrasive delivery system→Integrated cutting head→CAD/CAM program software kits;
UHP SYSTEM

Max pressure	400Mpa (60000psi)
Max flow ate	3.8L/min
Motor power	22KW/30KW/37KW/45KW
Motor rated current	66A
Power supply	380V/50HZ
Length	1650
Width	1250
Height	1100
Noise level	(90dB(A)
Min water pressure of cutting	2-4bar

Our UHP system apply American design and product according to international safety standard. Adopt imported exchange sensor. Solve the problem such as actuator stem broken, oil leakage from seal, collar cap of the end of actuator stem become flexible and other defect caused by common exchange sensor .It's steady, sate durable and credible Equip double protection of high pressure and low pressure and protection of over temperature. It can be continuously operated up to 24 hours. Crucial parts, such as plunger, seal and so on, Are all imported from USA. So the efficiency of cutting is very high, which make the performance of the product reach the advanced international level in deed
AUTOMATIC ABRASIVE DELIVERY SYSTEM
Provide abrasive storage function for waterjet cutting machine High delicacy inductor and signal lamp (optional) can instruct operator when to feed the abrasive to the tank. The capacity can continually supply abrasive for 500 to 800 minutes cutting. With new abrasive cup, it can convenient abrasive flow. Simple operation, reliable running, maintenance-free.
INTEGRATED CUTTING HEAD
Because of its special design it doesn't need to adjust and also ensure orifice and nozzle concentric so that it has high efficiency in cutting.
Main specifications:

Model	CUX400-SQ1313	CUX400-SQ2515	CUX400-SQ3020	CUX400-SQ4020
Cutting dimension	1.3×1.3×0.15m	2.5×1.5×0.15m	3.0×2.0×0.15m	4.0×2.0×0.15m
Form of machine	Cantilever style/ Gantry type
Running speed	0-10m/min
Control system	servo motor(YASKAWA Japan),Washing or Fagor control system
Control accuracy	±0.02mm
Cutting accuracy	±0.1mm
Max pressure	400Mpa(60000psi)
Flow rate of UHP water	3.8L/min
Power of oil pump	22KW/30KW/37KW

Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
